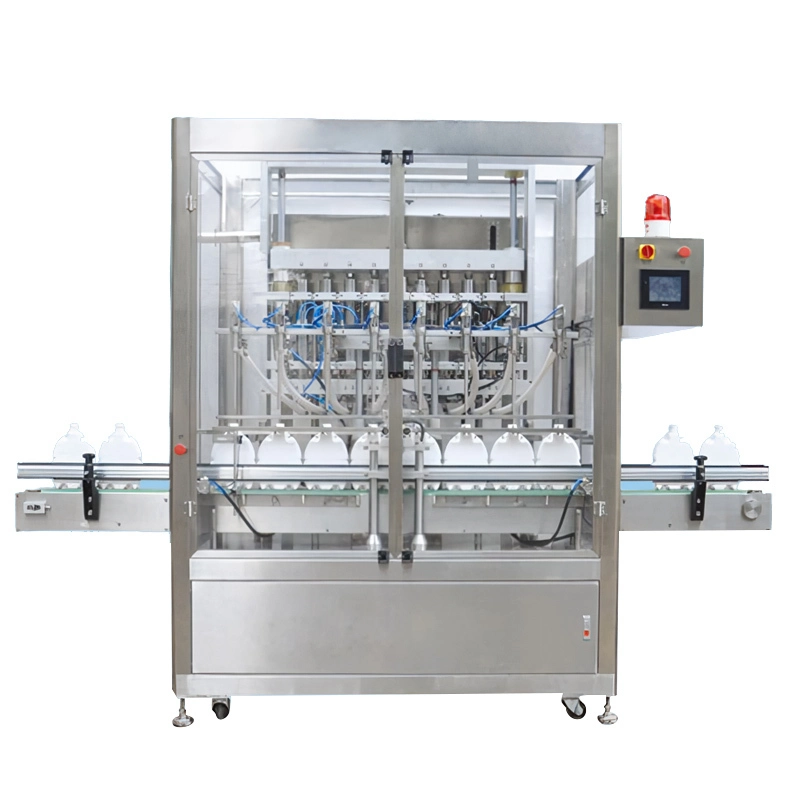

Automatic Servo Driven Piston Filling Machine
AFLS-840/860/880
Application
This machine is designed for handle water-thin to mid-viscid product. This product can be widely used in chemical, pharmaceutical, pesticide, cosmetic and food industry.
1. Piston pump filling, Cylinder driven piston and main cylinder for filling nozzle up and down.
2. Machine construction in Stainless Steel #304, contact parts are made in SS #316.
3. Different material of O rings for different application.
4. PLC combined with touch screen control system.
5. Filling Volume can be roughly adjusted together for all the pumps and make fine adjustments individually for each pump.
6. Bottom diving filling type avoids foam during filling.
7. No change parts are required for different bottle sizes.
8. No bottle, no filling safety device
|
Model |
AFLS-840 |
AFLS-860 |
AFLS-880 |
|
Filling Range |
A: 50-250ml; B: 100-500ml; C: 200-1000ml; D: 500-2500ml; E: 1000-5000ml |
||
|
Air Pressure |
0.6Mpa |
||
|
Power |
220V/1ph/50-60Hz; |
||
|
Max. Filling Capacity |
30B/min |
45B/min |
60B/min |
|
Filling Nozzles |
4 |
6 |
8 |
|
Filling Pump |
Stainless Steel Piston Pump |
||
Option:
1. Infeed and outfeed turn table
2. Material tank on top
3. Safety Transparent cover for safe operation circumstance and dust-proof.
4. Special Bottle Shape Moulds or bottle feeding auger
