Automatic Servo Driven Piston Pump Filling Machine AFLS-840 AFLS-860 AFLS-880
Filling capacity: 100ml-20L(Max. single filling bolume 2000ml,Max. filling times : 10(Max. filling volume 20L)
Power: 220V, 1PH, 50/60HZ
Filling error: ± 0.5%
Filling method: Servo driven piston
Application:
It is suitable for filling low-viscosity and medium-viscosity liquid.
Widely used in chemical industry, medicine, pesticide, cosmetics, food or other
fields.
5.0
like
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Model | APFL-840S | APFL-860S | APFL-880S |
| Filling capacity | 100ml-20L(Max. single filling bolume 2000ml,Max. filling times : 10(Max. filling volume 20L) | ||
| Power | 220V, 1PH, 50/60HZ | ||
| Filling error | ± 0.5% | ||
| Filling method | Servo driven piston | ||
| Number of filling heads | 4 | 6 | 8 |
| Production speed | 4-60BPM(depend on the product) | 8-90BPM(depend on the product) | 10-120BPM(depend on the product) |
| Air pressure | pressure 0.6Mpa | ||

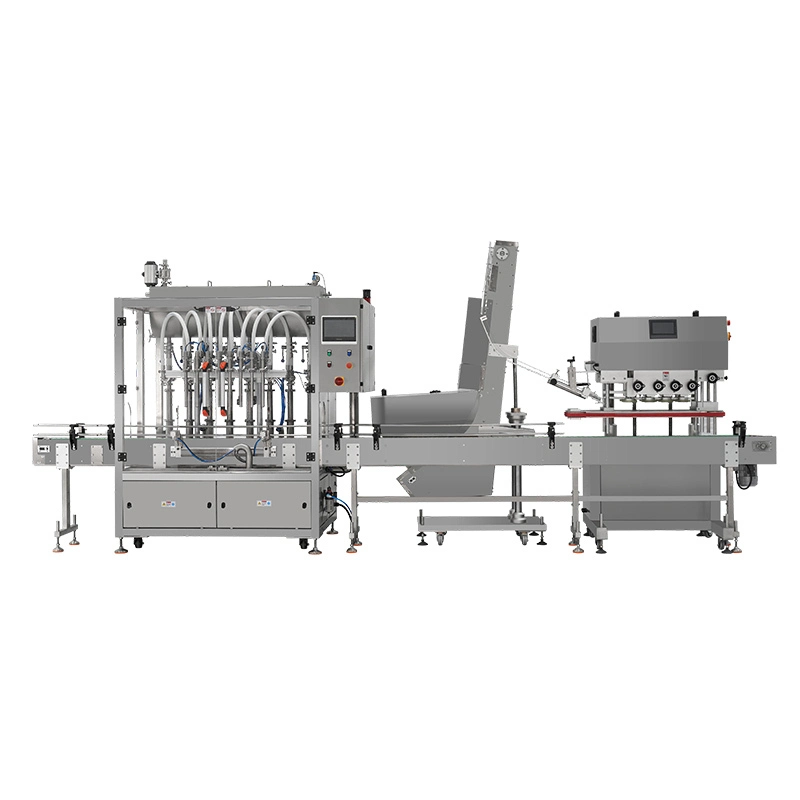

APFL-840S/860S/880S+APCM1208
Features
1. All piston pumps driven by bus Servo including the rising filling nozzles
2. 304SS framing, 316L SS directly contact parts
3. Different O-ring for different product
4. Large motion control PLC + 10" touch screen
5. Individual adjustable filling nozzle on HMI, easy operation and high accuracy, 100
groups of recipe
6. No extra parts needed for different container sizes. 7. No container no filling function
7. Multiple filling times function
