Big Volume Pillow Pack Vertical Packing Machine 1
Big Volume Pillow Pack Vertical Packing Machine 1

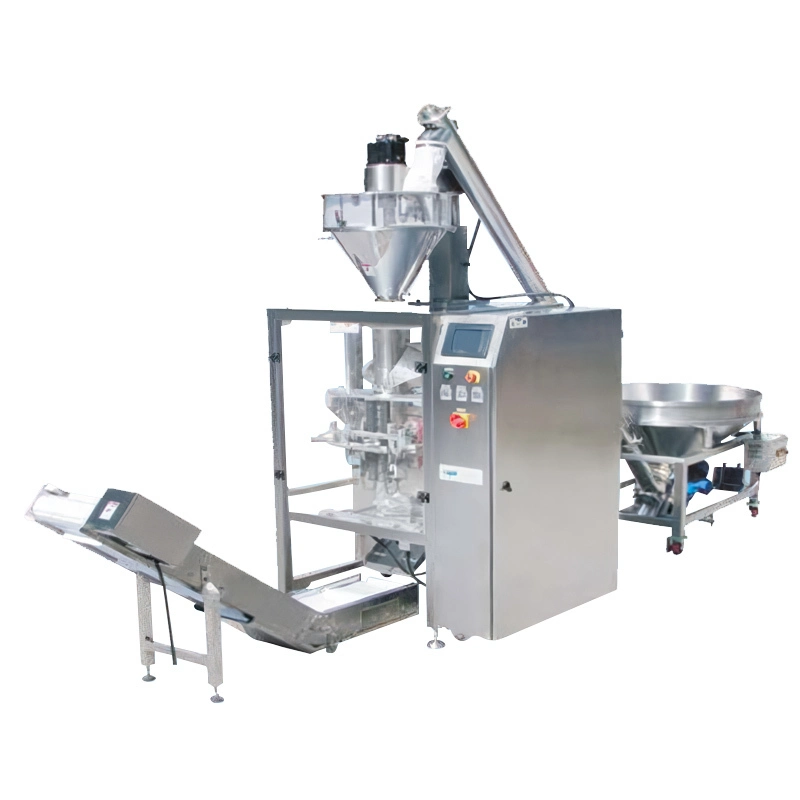

Big Volume Pillow Pack Vertical Packing Machine

PM-720/PM-620/PM-520/PM-420

Application: Automatic packaging of liquid, powder and granule in formed pouch for the food, pharmaceutical, chemical and other industries.



Optional Parts for Main Machine

Gusset Pouch forming Device

Date Code Printer (ribbon hot printer or thermos transfer printer)

Sachet header Hole Puncher

Fix Number Cut

Stainless Steel Machine Out Case

    oops...!

    no product data.

    Go to homepage

    Modal No.

    PM-720

    PM-620

    PM-520

    PM-420

    Max. Measuring Range (ml)

    4000

    3000

    2000

    1000

    Bag Length (mm)

    200-500

    120-450

    80-390

    80-300

    Bag Width (mm)

    150-350

    110-300

    90-250

    80-200

    Film WIdth(mm)

    320-720

    240-620

    200-520

    160-420

    Speed (Bag/min)

    10-35

    10-45

    15-50

    15-60

    Power

    220V/1ph, 3.5Kw

    220V/1ph, 3.2Kw

    220V/1ph, 2.5Kw

    220V/1ph, 2.5Kw

    Standard Feature:

    ◎   The machine can automatically complete the products conveying, measuring, and feeding, filling and bag forming, date code printing, bag sealing and cutting.

    ◎   Servo-motor driven, twin belt film pulling system.

    ◎   High sensitive fiber optic photo sensor can automatically trace color mark accurately.

    ◎   PLC control system combined with touch screen, can easily set and change the packing parameters.

    ◎   Daily production output and self-diagnostic machine error can be viewed directly from the screen.

    ◎   PID temperature controller monitors heat sealing temperature within ±1℃.

    ◎   Selected electrical and pneumatic components from reliable international manufacturer.

    ◎   With CE Certificate comply to CE standard.
