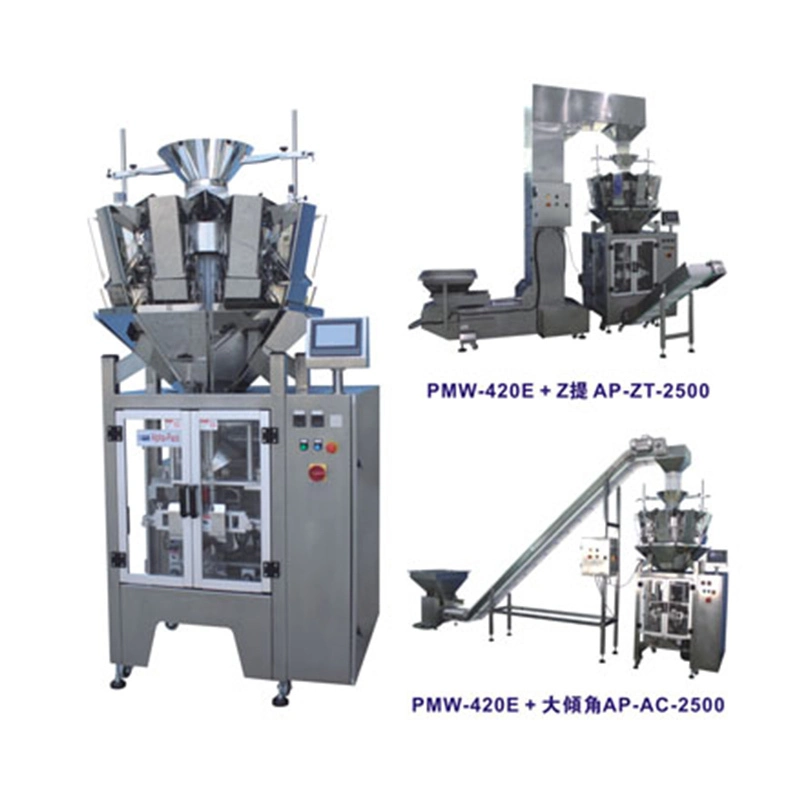

Combined vertical machine integrated machine
Options:
1. Servo motor drives horizontal sealing
2. Hole punching device
3. Gusset bag forming device
4. Tear notch device
5. Exhaust air function
6. Coding device (ribbon/thermal transfer)
7. Gas flush device
8. Product Discharge conveyor
9. Chain bag with batch cut
10. Refilling device for the scale
|
Model No. |
PMW-420E |
PMW-420D9 |
|
Filling weight (g) |
10-800 |
10-500 |
|
Scale hoper number |
10 |
9 |
|
Weighing hoper size |
1.6L |
1.8L |
|
Weighing hoper layer |
2 layers |
1 layers |
|
Bag length (mm) |
80-180(Bag length bigger than 180mm will pull film two times) |
|
|
Bag width (mm) |
80-200 |
|
|
Film width (mm) |
Max.420mm |
|
|
Max.Speed |
20-60ppm |
20-40ppm |
Application:
Dry & Processed Food, Fresh Food, For example: Snack Food,Seeds (Pulses), Nuts, Coffee(granules/ beans),Tea, Sugar,Grated Cheese,Bakery Products, Candies & Confectionery.Rice, Nuts & Dried Fruits, Spices,Pasta,Pet Food (pellets) etc.Other: Non Food.For example; Medium Nuts,Bolts, Washers,Auto, Electrical and Plumbing Parts etc.
Standard Features:
1.Automatic Combination weighing and vertical packaging combine in one single unit machine (2 in 1 technology).
2.With one frame,one electric cabinet, one electric plug only.
3.Strict height control and space saving, easy for cleaning and maintenance.
4.Suitable for small and medium packaging application with high speed and accuracy request.
