We combine packing machine's R&D, production, marketing and service all-in-one, to offer systematic packaging solutions.

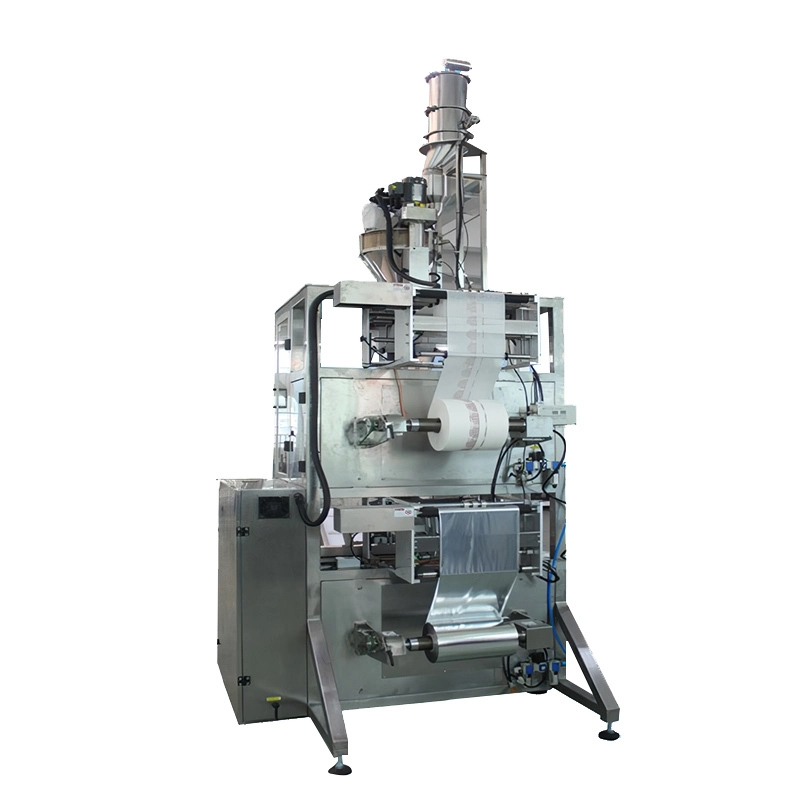

Automatic VFFS Bag in Bag Packing Machine 1
Automatic VFFS Bag in Bag Packing Machine 1

Automatic VFFS Bag in Bag Packing Machine

PM-420-BIB

Application: PM-420-BIB Automatic VFFS Bag in Bag Packing Machine, it is suitable for inner packaging of tea, coffee, all other drink powder and spice powder with filter paper, outer bag with air barrier packing material such as aluminum lamination film. It competes the process of inner and outer bag packing in one machine, save time and space.



Gusset Pouch forming Device

Date Code Printer (ribbon hot printer or thermos transfer printer)

Sachet header Hole Puncher

Fix Number Cut

Stainless Steel Machine Out Case

    oops...!

    no product data.

    Go to homepage

    Model

    PM-420-BIB

    Sealing Format

    Back-Seal (both inner and outer bag)

    Production Speed

    15-50 ppm

    Inner Bag Size Range

    Length

    50-250mm, adjustable



    Width

    60-180 mm, by change former

    Outer Bag Size Range

    Length

    80 -300mm, adjustable



    Width

    80-200mm, by change former

    Voltage

    220V,3pH, 60Hz / 380V, 3 pH, 50Hz

    Power

    6.5kw

    Air consumption

    70L/min.

    Dimensions

    L1486 x W1530 x H2565 mm

    Standard Feature:

    ◎  The machine can automatically complete the products conveying, measuring, and feeding, filling and bag forming, date code printing, bag sealing and cutting.

    ◎  Servo-motor driven, twin belt film pulling system.

    ◎  High sensitive fiber optic photo sensor can automatically trace color mark accurately.

    ◎  PLC control system combined with touch screen, can easily set and change the packing parameters.

    ◎  Daily production output and self-diagnostic machine error can be viewed directly from the screen.

    ◎  PID temperature controller monitors heat sealing temperature within ±1℃

    ◎  Selected electrical and pneumatic components from reliable international manufacturer.

    ◎  With CE Certificate comply to CE standard.
