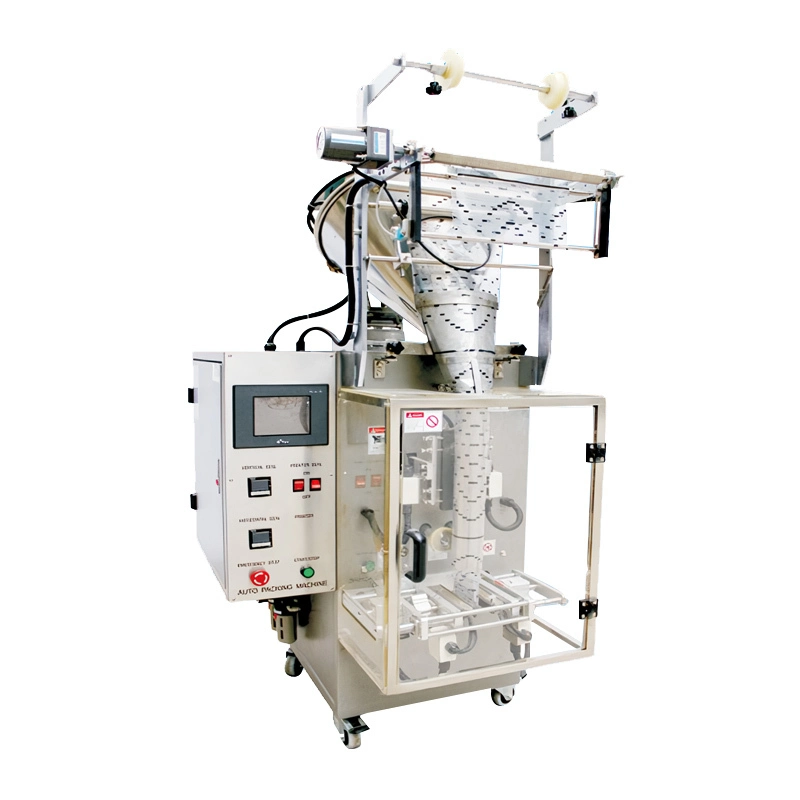

Middle Volume Pillow Pack Vertical Packing Machine
PM-150B/B3/B4/BP
Application: Automatic packaging of liquid, powder and granule in formed pouch for the food, pharmaceutical, chemical, and other industries.
Optional Dosing Device:
Auger screw Filler (for powder)
Volumetric Cup Filler (for granule)
Electrical Gear Pump (for liquid)
Piston Pump (for liquid or cream)
|
Model No. |
PM-150B |
PM-150B3 |
PM-150B4 |
PM-150BP |
|
Measuring range(ml) |
500 |
500 |
500 |
500 |
|
Bag length(mm) |
80-190 |
80-190 |
80-190 |
80-190 |
|
Bag width (mm) |
30-130 |
30-130 |
30-130 |
30-130 |
|
Speed (bag/min) |
30-60 |
30-60 |
30-60 |
30-60 |
|
Sealing Format |
Back Seal |
3 Side Seal |
4 Side Seal |
Pyramid/Triangle Seal |
|
Power |
220V/1ph, 50/60Hz |
220V/1ph, 50/60Hz |
220V/1ph, 50/60Hz |
220V/1ph, 50/60Hz |
Standard Feature:
◎ The machine can automatically complete the products measuring, conveying and feeding, filling and bag forming, date code printing, bag sealing and cutting.
◎ Servo-Motor driven heat seal film pulling system.
◎ High sensitive fiber optic photo sensor can automatically trace color mark accurately.
◎ PLC control system combined with touch screen, can easily set can change the packing parameters. Daily production output and self-diagnostic machine error can be viewed directly from the screen.
◎ PID temperature controller monitors heat sealing temperature within ±1℃.
◎ CE conformity
