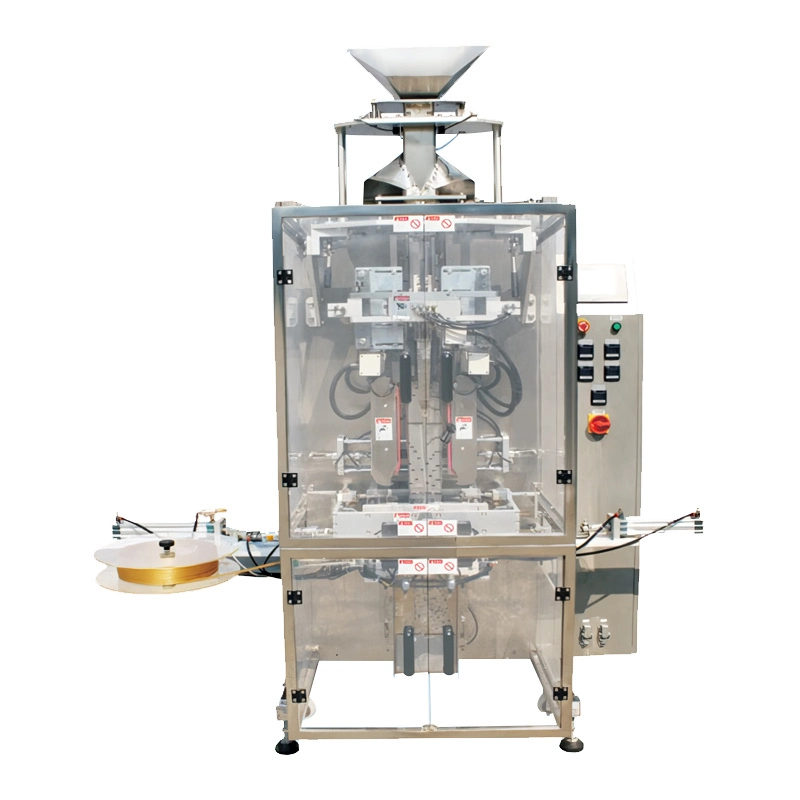

Four Corner Sealing Packaging Machine
PM-520-5S/PM-520-4S
Application: Automatic packaging of granule products in formed pouch for the food, pharmaceutical, chemical and other industries. Special for biscuits, potato chips, shrimp chips, foodstuff etc.
Optional parts:
Inclined design
Date code printer
Stainless steel case
Pouch clipping device
|
Model No. |
PM-520 5S |
PM-520 4S |
|
Sealing number |
4 corner seal and fin seal |
Only 4 comer seal |
|
Bag Length (mm) |
150-480 |
150-480 |
|
Max. Film Width(mm) |
520 |
|
|
Speed (Bag/min) |
20-50 |
|
|
Power supply |
220V, 6kw |
|
Packing Process:
◎ The machine can automatically complete the products conveying, measuring, and feeding, filling and bag forming, date code printing, bag sealing and cutting.
◎ Servo-motor driven, twin belt film pulling system.
◎ High sensitive fiber optic photo sensor can automatically trace color mark accurately.
◎ PLC control system combined with touch screen, can easily set and change the packing parameters. Daily production output and self-diagnostic machine error can be viewed directly from the screen.
◎ PID temperature controller monitors heat sealing temperature within ±1℃
◎ Selected electrical and pneumatic components from reliable international manufacturer.
◎ Sealing at 4 corners, Box style pouch look nicer and higher quality
◎ Inclined design, better solution for easy break products (option)
◎ With CE Certificate comply with CE standard
