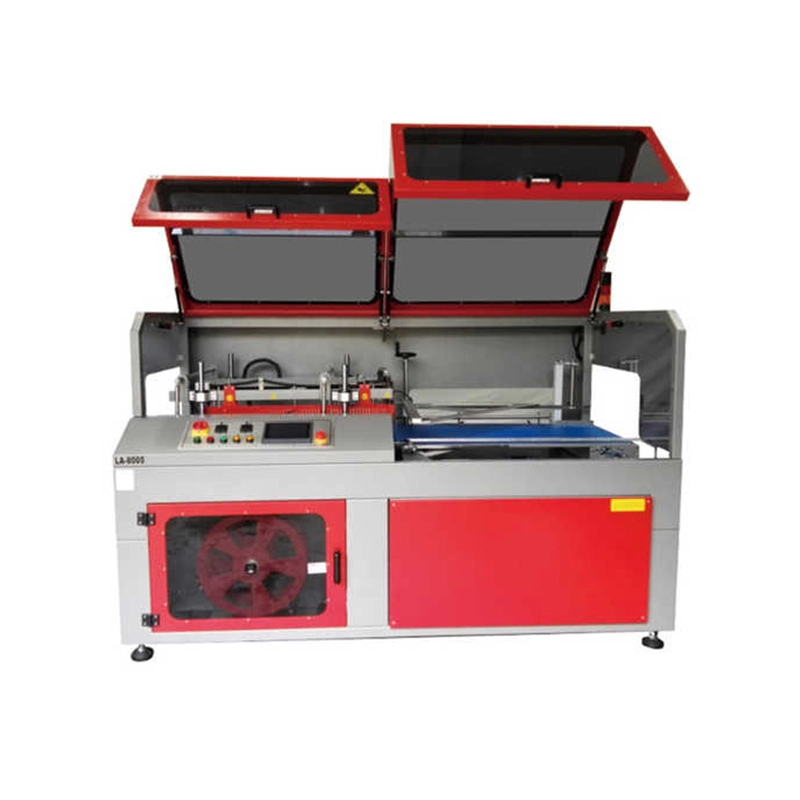

Fully automatic L type sealing machine
Machine allows a simple and precise control of all the machine operations, such as:
1. Possibility of storing up to 10 different operation programs
2. Automatic control of the sealing bar height (Only for CS model)
3. Double adjustment of the sealing blade temperature, both lengthways and broadways
4. Possibility of packing single packs or multipacks
5. Speed of conveyors electronically adjustable from the control panel
Options:
1. Printing mark registration device for printed film
2. Additional Infeed and outfeed belt conveyor
3. Kissing belt for small product
|
Model No. |
LA.6000CS |
LA.6000 |
LA.5000 |
|
Power Supply |
220V/1 PH/50HZ/3200W |
220V/1 PH/50HZ/3000W |
220V/1 PH/50HZ/2800W |
|
Air Supply |
6 Bar/ 90L/min. |
6 Bar/ 90L/min. |
6 Bar/ 60L/min. |
|
Sealing bar dimension |
610* 480 mm |
610* 480 mm |
480* 420 mm |
|
Max. pack height |
200mm |
120mm |
80mm |
|
Max. conveyor speed |
30m/min. |
30m/min. |
30m/min. |
|
Max. packing speed |
45ppm |
45ppm |
45ppm |
|
Center seal function |
Yes |
No |
No |
|
Machine size |
2040* 1550*1650 mm |
2040* 1550*1650 mm |
1300* 1450*1650 mm |
|
Packing size |
2160* 1730*1620 mm |
2160* 1730*1620 mm |
1420* 1630*1620 mm |
|
Machine weight |
610/780kg |
580/750kg |
390/500kg |
|
Model No. |
LA-8000CS |
LA-8000VMA |
LA-8000VMB |
|
Power Supply |
220V/1 PH/50HZ/3600W |
220V/1 PH/50HZ14600W |
220V/1 PH/50HZ/3400W |
|
Air Supply |
6 Bar/ 90L/min. |
6 Bar/ 10L/min. |
6 Bar/ 90L/min. |
|
Sealing bar dimension |
860*670 mm |
860*670 mm |
860*670 mm |
|
Max. pack height |
250 mm |
300mm |
200mm |
|
Sealing rack driven by |
Cylinder |
Servo motor vertical motion |
Cylinder vertical motion |
|
Max. conveyor speed |
30m/ min. |
30m/ min. |
30m/ min. |
|
Max. packing speed |
35 ppm |
35ppm |
35ppm |
|
Center seal function |
Yes |
Yes |
No |
|
Machine size |
2473*1713*1670 mm |
2473*1713*1670 mm |
2473*1713*1670 mm |
|
Packing size |
2580*1840*1570 mm |
2580*1840*1570 mm |
2580*1840*1570 mm |
|
Machine weight |
750/950 kg |
780/980kg |
750/950 kg |
