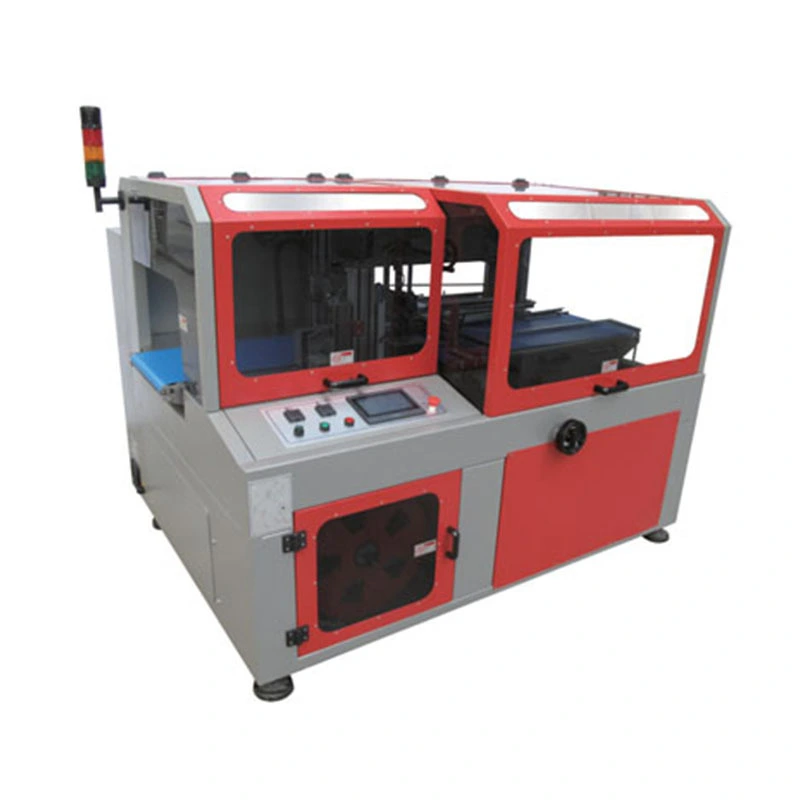

High speed side sealing packing
Feature
1. Constant heated sealing blades can perform continuously,which enables no limit of product length and high capacity of up to 60 bags per minute.
2. Auto photocell infeed system provides both horizontal and vertical choices to suit various product sizes.
3. Product changeovers can be easily realized by hand wheel adjustments, no elements need to be replaced.
4. Machine produces an enclosed pack with sealing on 3 sides.
5. Applicable for PE, POF and other center-folded shrink films, especially for POF shrink film packing.
6. Automatic Waste Strip wind up design.
7. Motor-driven Infeed conveyor and free roller Outfeed conveyor are options for fully automatic application.
Options:
1. Kissing belt(suitable for small, irregular products)
2. Printing Film Photo sensor
3. 1.5M Infeed conveyor4.Automatic Product Pusher 5.3 meters length lugs pushing conveyor
|
Model No. |
APSS-5022 |
APSS-7522 |
APSS-10022 |
APSS-4015E |
APSS-7030E |
|
Power Supply |
220V/1PH//3000W |
3800V/3PH//4000W |
380V/3PH//5000W |
220V/1PH//2000W |
220V/1PH//2500W |
|
Air Supply |
6 Bar/10L/min. |
6 Bar/10L/min. |
6 Bar/10L/min. |
6 Bar/30L/min. |
6 Bar/30L/min. |
|
Sealing bar width |
500mm |
750mm |
1000mm |
400mm |
700mm |
|
Max.pack height |
220mm |
220mm |
220mm |
150mm |
300mm |
|
Sealing jaw driven by |
servo motor |
servo motor |
servo motor |
Cylinder |
Cylinder |
|
Max.conveyor speed |
35m/min. |
35m/min. |
35m/min. |
35m/min. |
35m/min. |
|
Max. packing speed |
70ppm |
50ppm |
40ppm |
50ppm |
30ppm |
|
Center seal function |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Machine size(L*W*H) |
2130*1697*1722 mm |
2404*2153*1722 mm |
2603*2395*1722 mm |
1582*1500*1722 mm |
2404*2150*1722 mm |
|
Packing size(L*W*H) |
2210*2020*1720 mm |
2480*2160*1720mm&1460*600*620mm |
2660*2110*1720mm&1660*960*1170mm |
1810*1610*1720mm |
2480*2080*1720mm&1460*600*620mm |
|
Machine weight(NW/GW) |
760/1000kg |
820/1136kg&90/120kg |
1040/1330kg&152/200kg |
630/770kg |
800/1110kg&90/120kg |
