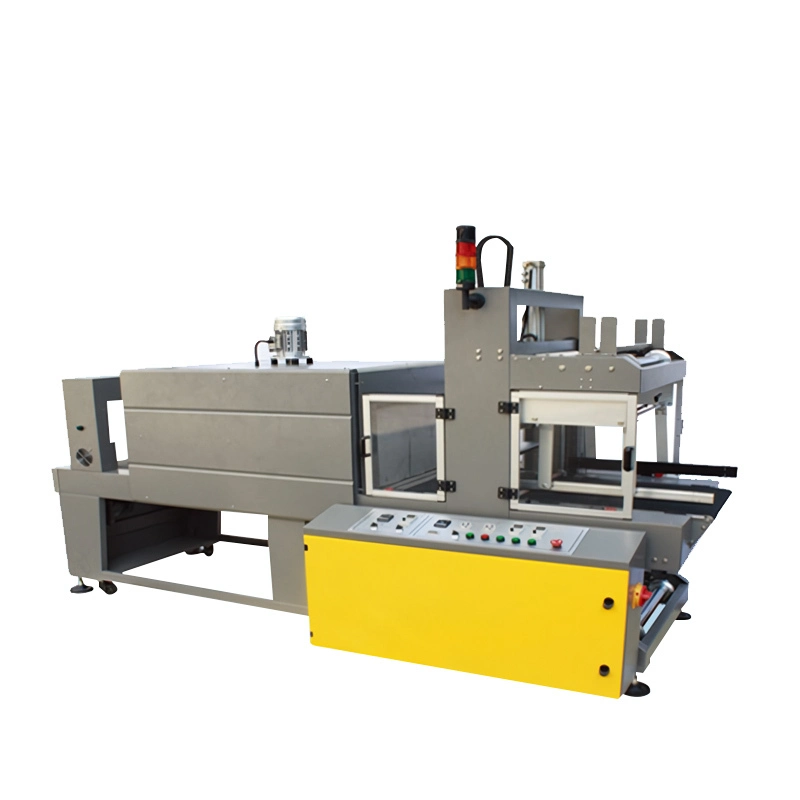

Automatic PE Sleeve Wrapping & Shrinking Machine
APW-T Series
This machine is designed for the PE wrapping of heavy object packaging. It able to handle both single and multi- packs, such as a bunch of soft-drink tray, bottles, boxes, etc….
1. Automatic wrapper and tunnel combo design, very compact, save space.
2. Conveyor with adjustable speed controlled by inverter
3. Motorized upper and lowerfilm unwinding
4. Mono-chamber tunnel
5. Shrink tunnel with PID temperature controller, temperature tolerance ±1℃
|
Model No. |
APW-6040MT |
APW-6040DT1 |
|
Voltage supply/ Installed power |
380V/3ph, 14 KW |
380V/3ph 14KW |
|
Compressed air pressure and consumption |
6 bar, 50L/min |
6 bar, 40L/min |
|
Sealing bar |
600mm |
600mm |
|
Maximum product height |
300 mm |
300 mm |
|
Max. output |
10 P/min. |
12 P/min. |
|
Working height |
850mm |
850mm |
|
Maximum size of film reel |
W 600- φ 350mm X2 |
W 600-φ 350mm X2 |
|
Machine size (LxWxH) |
3110X1360X2410 mm |
3100X1360X2140 mm |
|
Packed machine size (LxWxH) |
3260X1460X2230 mm |
3260X1460X2230 mm |
|
Machine weight (NW/GW) |
765/1150 |
765/1150 |
