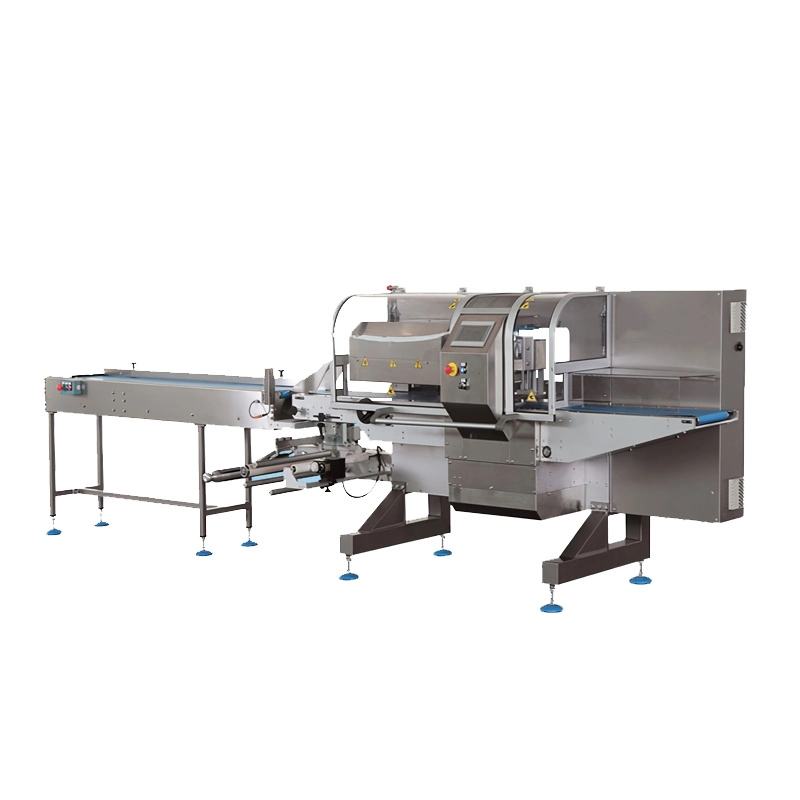

Horizontal Flow Pack Machine (Bottom Film Box Motion)
AHP-700BBM-S3
Application: This horizontal flow wrapper is applicable for packing pillow pack of various irregular, bulky, sticky or loose products, such as egg rolls, ice cream, jelly candy, pizza, bread, etc.
Option
Photocell for print registered film.
Photocell “no product no bag”
A.P. pre-setting (gas flushing)
Pneumatic pressing unit
Printers
|
Model No. |
AHP-700BBM-S3 |
|
Wrapping Speed |
Up to 50-60 pcs. / Min. |
|
Film Width |
600-700 mm |
|
Bag Length |
50-600 mm |
|
Max. Bag Height |
120 mm |
|
Voltage |
400V, 3 Phase, 50 Hz |
|
Power |
6/9 Kw |
Standard Feature
Main machine structure in steel with covers in stainless steel.; Product contact parts in stainless steel; Easy access to electric and pneumatic parts.
2000 mm long infeed conveyor with nylon pushers (standard); Adjustable forming box; Three sets of wheels for longitudinal sealing with pneumatic opening and pre-heating bars
Transverse continous box motion sealing jaw; Reel holder with expanding shaft; 1000 mm long discharge conveyor belt complete of AC motor; Four brushless servomotors
Servomotor for the belt under the fin wheels; Motorised film unwinding; High-resolution 7” touch screen integrated control panel; Remote maintenance; Power 6/9 Kw. Voltage 400V-3-50 Hz; CE conformity
Option
Photocell for print registered film. Photocell “no product no bag”; A.P. pre-setting (gas flushing); Pneumatic pressing unit; Printers; Labelling devic; Two or more up-jaws
Double film reel holder; Automatic film splicer; In-line automatic feeding systems; Special loading systems; Euroslot die cutting system; Poly version; Full Inox version
