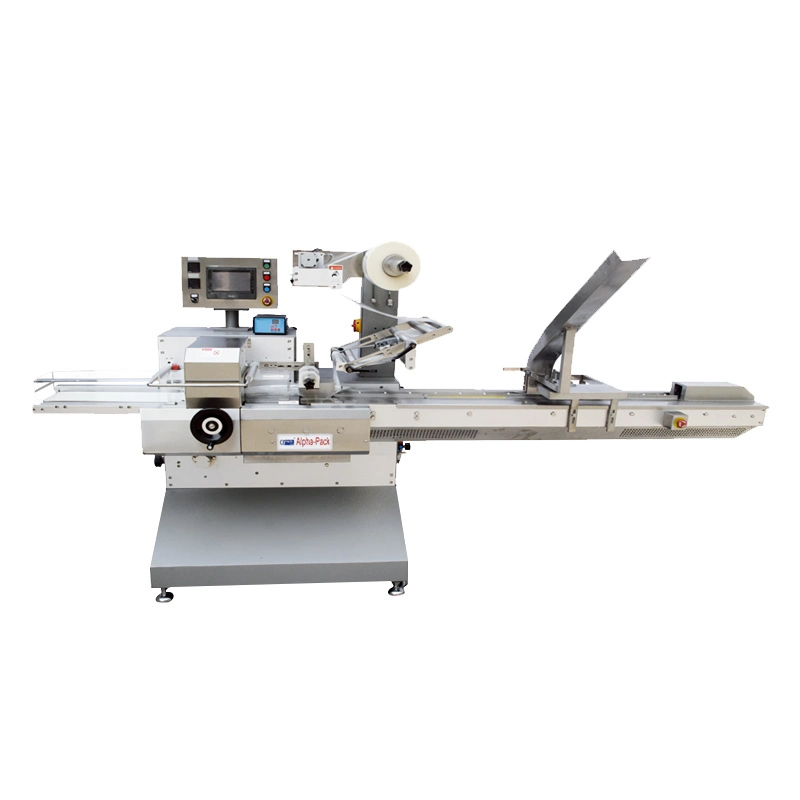

Servo Driven Horizontal Flow Wrapper
AHP-400S / AHP-500-3S
This wrapper is applicable for packing all kinds of solid and regular objects, including the foods such as biscuit, bread, instant noodle, ice cream, moon cake and soft sweets, and other objects such as toilet soap, medicated essence, note book, pen pack, tape and medicines in regular shapes.
Model No. AHP-400S
Wrapping speed: up to 100 pcs/min.
Max. Film reel width: 400mm
External film reel dia.: 350mm
Max. package height: 70mm
Max. package width: 200mm
Min. package length: 60mm
| Wrapping speed: | up to 100 pcs/min. | up to 250 pcs/min. |
| Max. Film reel width: | 400mm | 500mm |
| External film reel dia.: | 350mm | 350mm |
| Max. package height: | 70mm | 100mm |
| Max. package width: | 200mm | 200mm |
| Min. package length: | 60mm | 76mm |
| Max. package length: | 452mm | 564mm |
| Compressed air pressure: | 6bar | 6bar |
| Supply voltage : | 220-240v1ph | 380-400v3ph |
| Power consumption : | 2.5kw | 3.0kw |
| AHP-400S | AHP-500-3S | |||||||
| φ114 | φ114 | φ114 | Φ174 | |||||
| 1SP | 2SP | 1SP | 2SP | 1SP | 2SP | 1SP | 2SP | |
| Max. Length (mm) | 357 | 178 | 452 | 226 | 452 | 226 | 564 | 273 |
| Min. Length (mm) | 120 | 60 | 151 | 75.3 | 151 | 75.3 | 182 | 91 |
| Max. Height (mm) | 40 | 40 | 70 | 70 | 70 | 70 | 100 | 100 |
* The Max. Measures cannot be obtained all three together
Features
◎ Advanced PLC control system combined with 5.7" Colorful touch screen control panel, can easily set and change packing parameters, display production data and self-diagnostic machine error can be viewed directly from the screen.
◎ Servo driving system, film speed automatically synchronized with conveyor speed
◎ End seal jaw speed adjustable by a hand wheel when bag length change.
◎ All parts are built for easy maintenance and cleaning.
◎ Pulling wheels open by means of pneumatic switches. The sealing wheels open automatically at every machine stop.
◎ Safety guards as required by European law. Comply with CE standard.
◎ On all Machines is possible to install: Photocell for printed film, Printer for date, line shaft for automatic feeders, etc.
