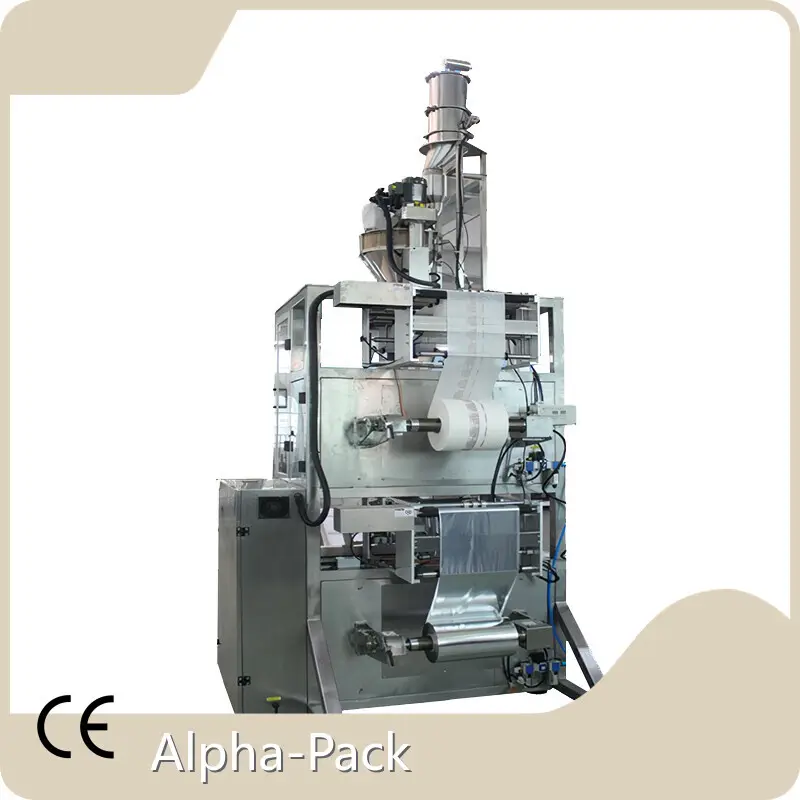

Model |
PM-420-BIB |
|
Sealing Format |
Back-Seal (both inner and outer bag) |
|
Production Speed |
15-50 ppm |
|
Inner Bag Size Range |
Length |
50-250mm, adjustable |
|
Width |
60-180 mm, by change former |
Outer Bag Size Range |
Length |
80 -300mm, adjustable |
|
Width |
80-200mm, by change former |
Voltage |
220V,3pH, 60Hz / 380V, 3 pH, 50Hz |
|
Power |
6.5kw |
|
Air consumption |
70L/min. |
|
Dimensions |
L1486 x W1530 x H2565 mm |
Standard Feature:
◎ The machine can automatically complete the products conveying, measuring, and feeding, filling and bag forming, date code printing, bag sealing and cutting.
◎ Servo-motor driven, twin belt film pulling system.
◎ High sensitive fiber optic photo sensor can automatically trace color mark accurately.
◎ PLC control system combined with touch screen, can easily set and change the packing parameters.
◎ Daily production output and self-diagnostic machine error can be viewed directly from the screen.
◎ PID temperature controller monitors heat sealing temperature within ±1℃
◎ Selected electrical and pneumatic components from reliable international manufacturer.
◎ With CE Certificate comply to CE standard.
Company Advantages
· Alpha-Pack custom packing machine is produced using the lean production method.
· The product has been tested with accurate data.
· With the advanced technology and strict quality control system, Alpha-Pack (Heyuan) Co.,Ltd. ensures to provide customers with excellent and High-quality products.
Company Features
· Alpha-Pack (Heyuan) Co.,Ltd. is a large-scale custom packing machine manufacturer.
· Our employees are our most important asset. The dynamic team is distinguished by its agility, effective communication, and professionalism. All these have provided the company with a strong foundation to better serve clients.
· The source of keeping Alpha-Pack ahead of other companies is to always hold the idea of customer first. Call now!
Application of the Product
custom packing machine of Alpha-Pack can be widely used in various fields.
Alpha-Pack is dedicated to solving your problems and providing you with one-stop and comprehensive solutions.
