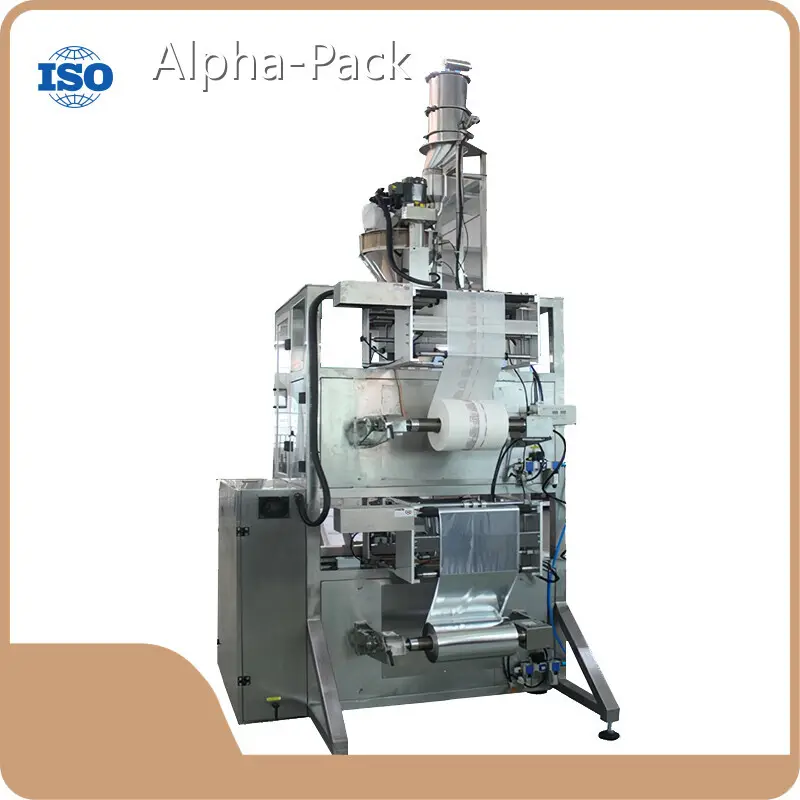

Custom Vertical Form Fill Seal Machine Manufacturers Alpha-Pack
Product details of the vertical form fill seal machine manufacturers
Product Description
vertical form fill seal machine manufacturers is proved practically feasible in structure and could be worthy of recommendation. We always pay attention to the industry quality standards, product quality is guaranteed. It is one of Alpha-Pack (Heyuan) Co.,Ltd.'s greatest achievements to understand each customer’s unique business requirement.
|
Model |
PM-420-BIB |
|
|
Sealing Format |
Back-Seal (both inner and outer bag) |
|
|
Production Speed |
15-50 ppm |
|
|
Inner Bag Size Range |
Length |
50-250mm, adjustable |
|
|
Width |
60-180 mm, by change former |
|
Outer Bag Size Range |
Length |
80 -300mm, adjustable |
|
|
Width |
80-200mm, by change former |
|
Voltage |
220V,3pH, 60Hz / 380V, 3 pH, 50Hz |
|
|
Power |
6.5kw |
|
|
Air consumption |
70L/min. |
|
|
Dimensions |
L1486 x W1530 x H2565 mm |
|
Standard Feature:
◎ The machine can automatically complete the products conveying, measuring, and feeding, filling and bag forming, date code printing, bag sealing and cutting.
◎ Servo-motor driven, twin belt film pulling system.
◎ High sensitive fiber optic photo sensor can automatically trace color mark accurately.
◎ PLC control system combined with touch screen, can easily set and change the packing parameters.
◎ Daily production output and self-diagnostic machine error can be viewed directly from the screen.
◎ PID temperature controller monitors heat sealing temperature within ±1℃
◎ Selected electrical and pneumatic components from reliable international manufacturer.
◎ With CE Certificate comply to CE standard.
Company Feature
• Alpha-Pack has introduced an advanced management model and excellent management philosophy, and built a strong and professional management team.
• Alpha-Pack has been dedicated to the business of Automatic filling,Vertical form film seal packing machine,shrink packing machine for years. Now we are the leader in the industry.
• Gathered multi traffic lines, the location of Alpha-Pack provides convenience for transportation. In this way, we ensure the efficient transportation of different products.
More quality Automatic filling,Vertical form film seal packing machine,shrink packing machine all in Alpha-Pack. Please feel free to contact us for more information.
