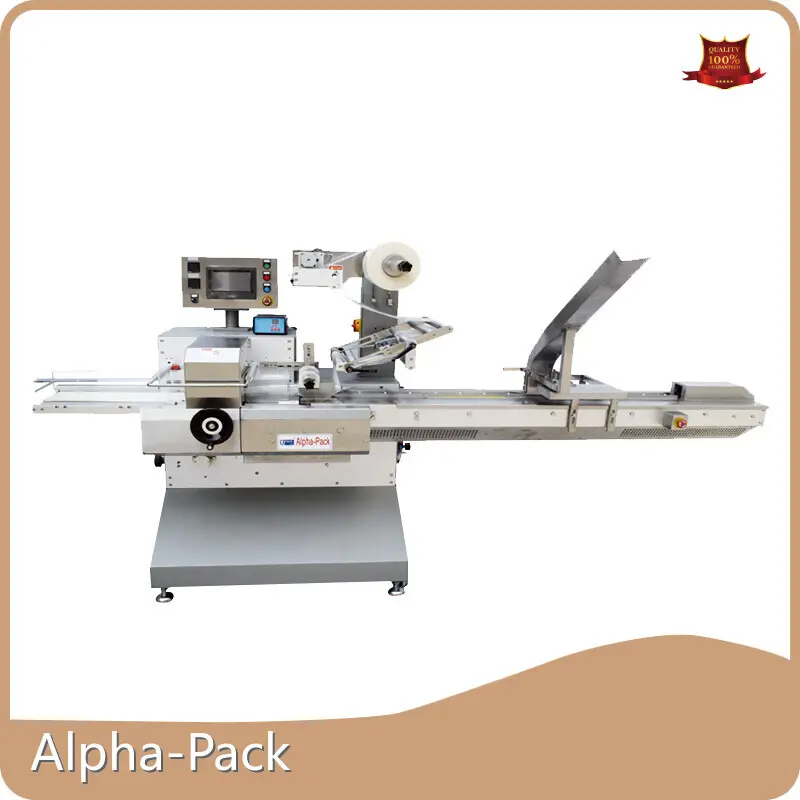

Packing Machine Alpha-Pack,-1
Product details of the packing machine
Product Introduction
Alpha-Pack packing machine is constructed of durable and eco-friendly materials. The product is safe and durable, can be used for quite a long time. The product takes a leading role in the market thanks to its outstanding features.
| Wrapping speed: | up to 100 pcs/min. | up to 250 pcs/min. |
| Max. Film reel width: | 400mm | 500mm |
| External film reel dia.: | 350mm | 350mm |
| Max. package height: | 70mm | 100mm |
| Max. package width: | 200mm | 200mm |
| Min. package length: | 60mm | 76mm |
| Max. package length: | 452mm | 564mm |
| Compressed air pressure: | 6bar | 6bar |
| Supply voltage : | 220-240v1ph | 380-400v3ph |
| Power consumption : | 2.5kw | 3.0kw |
| AHP-400S | AHP-500-3S | |||||||
| φ114 | φ114 | φ114 | Φ174 | |||||
| 1SP | 2SP | 1SP | 2SP | 1SP | 2SP | 1SP | 2SP | |
| Max. Length (mm) | 357 | 178 | 452 | 226 | 452 | 226 | 564 | 273 |
| Min. Length (mm) | 120 | 60 | 151 | 75.3 | 151 | 75.3 | 182 | 91 |
| Max. Height (mm) | 40 | 40 | 70 | 70 | 70 | 70 | 100 | 100 |
* The Max. Measures cannot be obtained all three together
Features
◎ Advanced PLC control system combined with 5.7" Colorful touch screen control panel, can easily set and change packing parameters, display production data and self-diagnostic machine error can be viewed directly from the screen.
◎ Servo driving system, film speed automatically synchronized with conveyor speed
◎ End seal jaw speed adjustable by a hand wheel when bag length change.
◎ All parts are built for easy maintenance and cleaning.
◎ Pulling wheels open by means of pneumatic switches. The sealing wheels open automatically at every machine stop.
◎ Safety guards as required by European law. Comply with CE standard.
◎ On all Machines is possible to install: Photocell for printed film, Printer for date, line shaft for automatic feeders, etc.
Company Advantage
• Our company has built an elite team, based on the comprehensive organization structure and talents cultivation mechanism. All of them are passionate, dedicated, practical and courageous.
• Alpha-Pack puts customers first and make effort to provide quality and thoughtful services based on customer demand.
• Our business covers many cities across the country, and our sales network is expanding year by year. After continuous development, we are currently marching into overseas markets.
Alpha-Pack is a pharmaceutical company focused on integrity and credit. Automatic filling,Vertical form film seal packing machine,shrink packing machine are of reliable quality and reasonable price. If needed, feel free to contact us.
