Packing Machine Alpha-Pack,
Product details of the packing machine
Product Overview
packing machine is stable in performance and reliable in quality. It is characterized by the following advantages: high precision, high efficiency, high flexibility, low abrasion, etc. It can be widely used in different fields. The raw materials of Alpha-Pack packing machine is extremely strict selection. The product only has superior quality but also has stable performance that customers can count on. With a wide application, packing machine can be commonly used in many fields such as food and beverage, pharmaceutical, daily necessities, hotel supplies, metal materials, agriculture, chemicals, electronics, and machinery. Alpha-Pack (Heyuan) Co.,Ltd. holds open attitude to suggestions for our packing machine from our customers.
Product Information
Compared with similar products, the packing machine of Alpha-Pack is more strict in the selection of raw materials. The specific aspects are as follows.
|
Model |
Parameter for APR-C20L |
Parameter for APR-C20H |
|
Speed |
5-12 cycles / min |
5-12 cycles / min |
|
Effective load bearing |
20KG |
20KG |
|
Floor area |
3590mm*1725mm |
3590mm*1725mm |
|
Power |
220V 3KW, 1Ph,50Hz |
220V 3KW, 1Ph,50Hz |
|
Working radius |
1600mm |
1600mm |
|
Applicable carton range |
L:200-500mm; W:200-500mm; H: 200-400mm (apply to 1200mm*1200mm) |
L: 200-500mm; W: 200-500mm; H: 200- 400mm (apply to 1200mm*1200mm) |
|
Palletizing height |
standard 1.6Meter |
2.2Meter |
|
Pallet size |
Maximum 1200mm*1200mm Material: plywood, plastic, wood |
Maximum 1200mm*1200mm Material: plywood, plastic, wood |
|
Placement rules |
AB stack |
AB stack |
|
Barometric pressure |
0.4-0.8 Air consumption: 400nl/min |
0.4-0.8 Air consumption: 400nl/min |
|
Re-read positioning accuracy |
±0.04 |
±0.04 |
Product Introduction

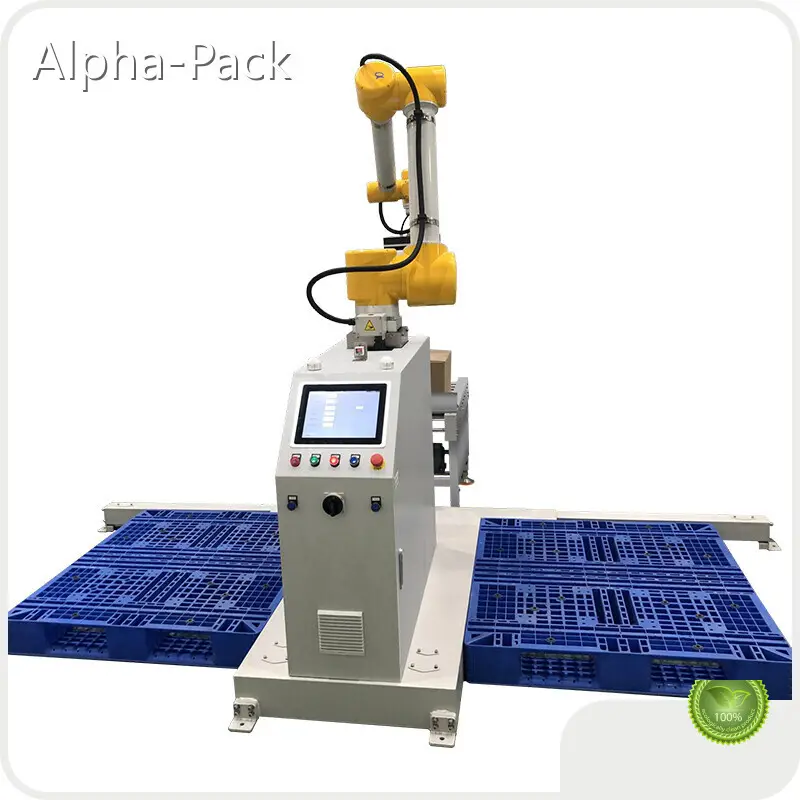

Collaborative Palletizer Workstation is a small goods- handling expert tailor-made for food, medicine, 3C, food, printing, daily chemical and other industries. Visual programming design only takes 5 minutes. After entering the information within a few minutes, the products/cartons can be stacked on the wooden board to realize unmanned handling.
The visual programming design that does not pick people is convenient for the operator to easily operate the robot; the end of the high-load design. The end effector can grab up to 20KG heavy products. The machine has flexible deployment, small footprint, simple wiring, convenient maintenance and fast efficiency. It can stack 8-10 boxes in one minute.
Characteristics
Simple operation
With touch screen design, it only needs to manually enter and save the parameters to realize unmanned handling;
Simple operation process
Preparation - Palletizing mode setting - A palletizing - B palletizing - complete;
Both left and right can be stacked Labor saving
The palletizing operation of the goods is completed by the machine instead of the manual;
Easy maintenance
Precision parts, only the suction cup needs to be replaced after 300,000 times of use;
High safety factor
No need to use fences for safety isolation, with high reliability and safety;
Flexible Expansion
Can be combined with unsealing machine, carton labeling machine and other assembly lines to provide customers with an overall solution for packaging goods.
Operating system
With 5 Axis
Austria Keba control system
Annovance 12 inch color touch screen
Build in anti collisione sensor
Company profile
Alpha-Pack Enterprise Limited was established in 1991 in Hong Kong. Alpha-Pack is a comprehensive enterprise that dedicated in packaging machinery in last 20 years; it combines R&D, production, marketing and service together.
Since the company has been founded, Alpha-Pack cooperated with many famous European packaging machinery manufacturers to make the packaging machinery for worldwide market. As the name in Chinese “Ouhua”，means we made the machine with European standard but in Chinese manufacturing cost.
Thanks to the trust from all the business partners, customers and staffs, Alpha-Pack has been grown as one of the biggest packaging machinery manufacturing group in South China, with more than 80,000 m2 manufacturing workshops in China and Europe, Alpha-Pack became the leading packaging manufacturer in China for the following categories of packaging machineries:
◈ Vertical Form Fill Seal and Flow Wrapper
◈ Thermo sealing & MAP
◈ Flow wrapper
◈ Pre made pouch filling and sealing machine
◈ Filling, capping and labeling machine
◈ Vacuum Machine
Company Introduction
Alpha-Pack (Heyuan) Co.,Ltd. is a large-scale packing machine manufacturer in China. Our design team is highly talented. They constantly evolve and refine their design capacity to ensure that we create a design that exceeds both customers' needs and expectations. Making great contribution for packing machine industry is Alpha-Pack's responsibility. Ask online!
If you have needs for purchasing our products in bulk, please contact our official customer service personnel.
