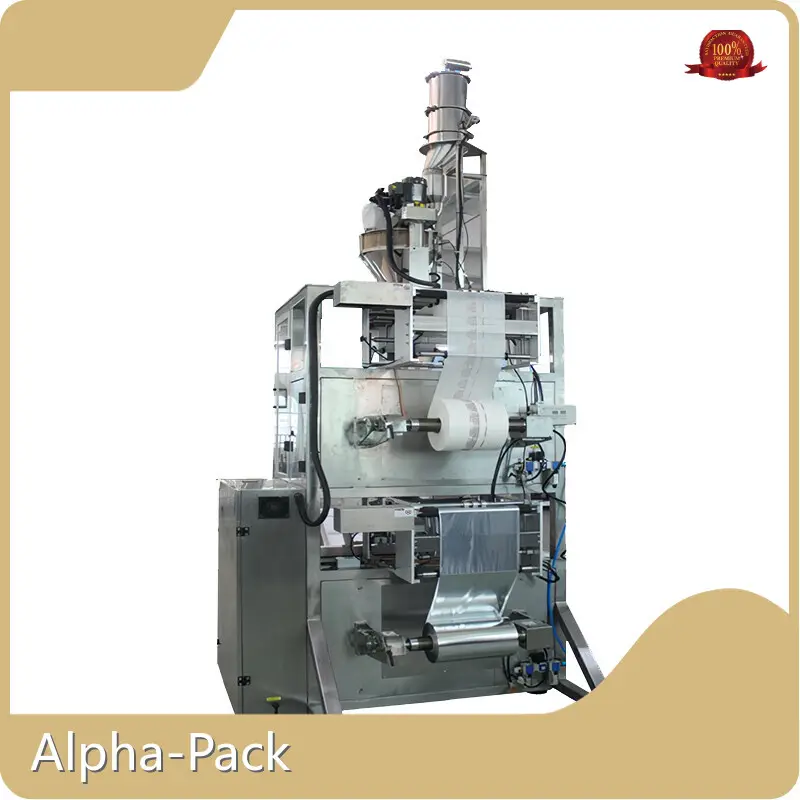

Vertical Form Fill and Seal Packaging Machines Alpha-Pack-1
Product details of the vertical form fill and seal packaging machines
Quick Detail
Alpha-Pack vertical form fill and seal packaging machines is made of materials that have strong durability. It has passed comprehensive performance tests before leaving the factory to ensure product quality. Alpha-Pack (Heyuan) Co.,Ltd.'s manufaction line follows a strictly uniform standard.
Product Introduction
After improvement, the vertical form fill and seal packaging machines produced by Alpha-Pack is more brilliant in the following aspects.
|
Model |
PM-420-BIB |
|
|
Sealing Format |
Back-Seal (both inner and outer bag) |
|
|
Production Speed |
15-50 ppm |
|
|
Inner Bag Size Range |
Length |
50-250mm, adjustable |
|
|
Width |
60-180 mm, by change former |
|
Outer Bag Size Range |
Length |
80 -300mm, adjustable |
|
|
Width |
80-200mm, by change former |
|
Voltage |
220V,3pH, 60Hz / 380V, 3 pH, 50Hz |
|
|
Power |
6.5kw |
|
|
Air consumption |
70L/min. |
|
|
Dimensions |
L1486 x W1530 x H2565 mm |
|
Standard Feature:
◎ The machine can automatically complete the products conveying, measuring, and feeding, filling and bag forming, date code printing, bag sealing and cutting.
◎ Servo-motor driven, twin belt film pulling system.
◎ High sensitive fiber optic photo sensor can automatically trace color mark accurately.
◎ PLC control system combined with touch screen, can easily set and change the packing parameters.
◎ Daily production output and self-diagnostic machine error can be viewed directly from the screen.
◎ PID temperature controller monitors heat sealing temperature within ±1℃
◎ Selected electrical and pneumatic components from reliable international manufacturer.
◎ With CE Certificate comply to CE standard.
Company Advantages
Situated in shen zhen, Alpha-Pack (Heyuan) Co.,Ltd. is a comprehensive company. We are mainly dedicated to the business of Automatic filling,Vertical form film seal packing machine,shrink packing machine. To achieve a bright future, our company takes honesty, fairness, justice, respect for science, and common prosperity as the development concept. Alpha-Pack thinks highly of talents introduction and cultivation. We have an experienced and professional talents team who plays a significant role in our company's rapid development. With professional service spirit, Alpha-Pack always provides customers with reasonable and efficient one-stop solutions.
Our products are all qualified and are sold directly from factory. Welcome friends from all walks of life to contact and consult us.
