We combine packing machine's R&D, production, marketing and service all-in-one, to offer systematic packaging solutions.

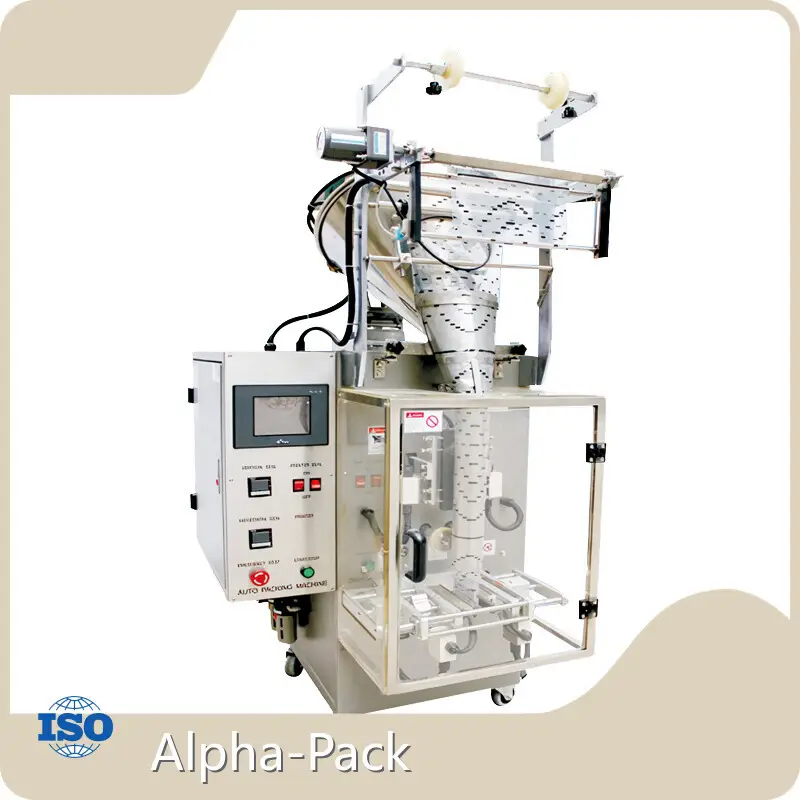

Vertical Form Fill and Seal Packaging Machines Alpha-Pack Manufacture

Inquiry

Company Advantages

· The production of Alpha-Pack vertical form fill and seal packaging machines adopts the highest standards in the industry.

· The product has been accredited by authoritative third parties in all aspects, such as performance, durability, and reliability.

· This product is provided in different grades and qualities so that it can serve all purposes and requirements.

Model No.	PM-150B	PM-150B3	PM-150B4	PM-150BP
Measuring range(ml)	500	500	500	500
Bag length(mm)	80-190	80-190	80-190	80-190
Bag width (mm)	30-130	30-130	30-130	30-130
Speed (bag/min)	30-60	30-60	30-60	30-60
Sealing Format	Back Seal	3 Side Seal	4 Side Seal	Pyramid/Triangle Seal
Power	220V/1ph, 50/60Hz	220V/1ph, 50/60Hz	220V/1ph, 50/60Hz	220V/1ph, 50/60Hz

Standard Feature:

◎ The machine can automatically complete the products measuring, conveying and feeding, filling and bag forming, date code printing, bag sealing and cutting.

◎ Servo-Motor driven heat seal film pulling system.

◎ High sensitive fiber optic photo sensor can automatically trace color mark accurately.

◎ PLC control system combined with touch screen, can easily set can change the packing parameters. Daily production output and self-diagnostic machine error can be viewed directly from the screen.

◎ PID temperature controller monitors heat sealing temperature within ±1℃.

◎ CE conformity

未标题-2 (5)

Company Features

· Alpha-Pack (Heyuan) Co.,Ltd. is recognized for its original vertical form fill and seal packaging machines products.

· vertical form fill and seal packaging machines is made by the innovative technology. Processed by high technology, vertical form fill and seal packaging machines enjoys great performance among the industry. Alpha-Pack produces vertical form fill and seal packaging machines through modern technology.

· We actively assume corporate social responsibility. CSR is a way for the company to benefit ourself while also benefiting society. For example, the company strictly conducts a resource conservation plan to reduce resource waste. Get more info!

Enterprise Advantages

Alpha-Pack has an elite team with modern corporate quality, whose team members are clearly aware of their own duties. This guarantees the production to be efficient and products to be high-quality.

Customer's needs first, user experience first, corporate success begins with good market reputation and the service relates to future development. In order to be invincible in the fierce competition, Alpha-Pack constantly improves service mechanism and strengthen the ability to provide quality services.

Alpha-Pack (Heyuan) Co.,Ltd. takes 'enterprising, creative, solid and first-class' as our core value, and 'becoming an industry leader' as our vision.

Alpha-Pack, formally established in has changed the traditional marketing model into a new network marketing model after years of diligent research. We attract the attention of people from all walks of life, and receive support to successfully break the barriers between contemporary business and traditional business. Now, our company becomes an outstanding enterprise in the industry.

Alpha-Pack has established sales outlets throughout the country. The products are also exported to overseas regions.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
