HX-006 Automatic Plastic Tube Filling and Sealing Machine
◎ Manually tube feeding, automatic registration mark identifying, filling, sealing with coding, end trimming, tube out feeding.

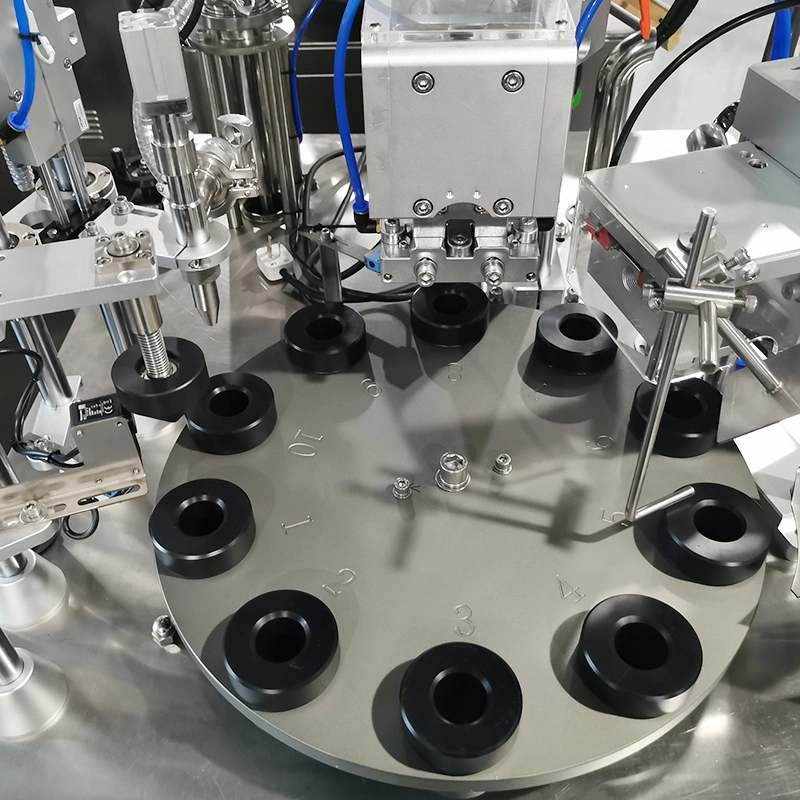

◎ Cam indexing system could position precisely for ten working stations.
◎ Adopts ultrasonic sealing technology, no need warm up time, more stable and neat sealing, no distortion and low reject rate less than 1%.
◎ Independent R & D for digital ultrasonic automatic tracking electrical control box, no need manual adjust the frequency, with power auto compensation function, avoiding the reduction of power after long time use. Could freely adjust the power based on tube material and size, stable and minimum the fault rate, extend the life span than the normal electrical box.
◎ PLC with touch screen control system with alarm system, could directly view the alarm information on the touch screen, could locate the problem and solve immediately.
◎ Made of 304 stainless steel, acid and alkali resistance, corrosion resistance.
◎ No tube, no fill, no tube, no seal function, reducing the machine and mould loss.
◎ Adopts Anti-dripping filling nozzle.
| Machine Parameters | |||
| Model | HX-006 | Capacity | 20-25pcs/min |
| Frequency | 20kHz | Tube diameter | 13-50mm |
| Power | 2600W | Tube height | 70-250mm |
| Power supply | AC220V/110V | Working pressure | 0.6 MPa |
| Filling Range | A.6-60ml B.10-120ml C.25-250ml D.50-500ml | Size | L900*W1100*H1600mm |
| Filling accuracy | ±1g | N.W/G.W | 310kgs |
| Main Part List | |||
| Ultrasonic system | Automatic frequency tracing | Air cylinder | AirTAC, China Taiwan |
| Benchmarking electric eye | Panasonic, Japan | Solenoid valve | AirTAC, China Taiwan |
| PLC | Coolmay, CN | Motor | zhongdamotor CN |
| electric relay | Omron, Japan | Partitioner | JOUDER, China Taiwan |
| Touch Panel | WEINVIEW, China Taiwan | Frequency converter | DELTA, China Taiwan |
| Inductive switch | SICK, Germany | Stepper motor | Leadshine, CN |
Application:
Widely used for food, pharmaceutical, cosmetics, chemical and other plastic, PE, aluminum laminated tube filling and sealing.
Machine Options:
Auto Refill pump; Heating and mixing system for material hopper; Air blow system for high viscous and sticky material; Safety door; Industrial water chiller; 316L Stainless Steel Contact par
