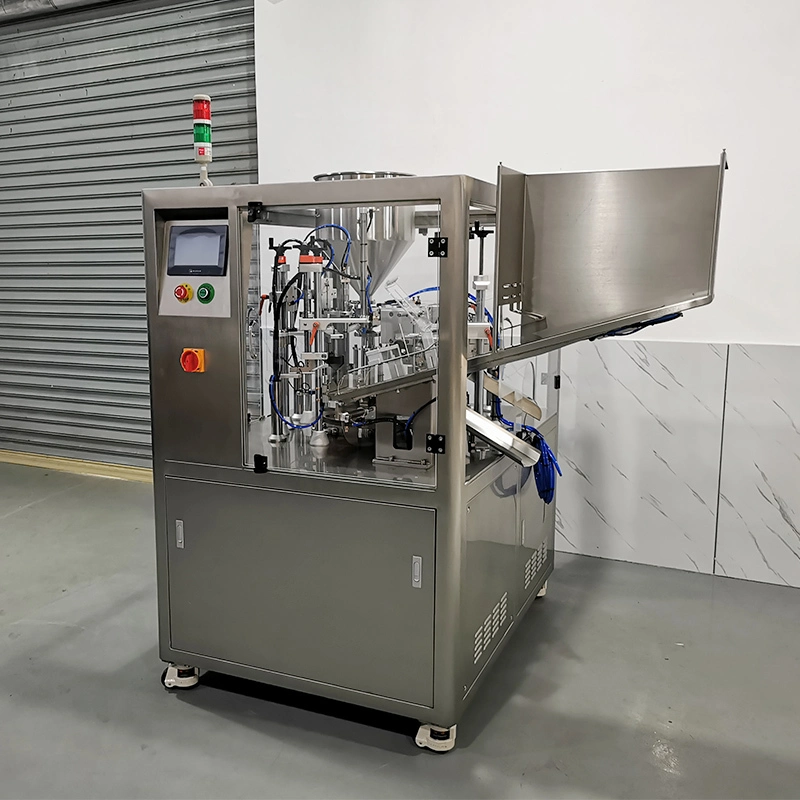

The equipment has a high degree of automation, automatic tube loading, automatic color marking, automatic tail sealing, batch number printing, and automatic tube discharge. Using the internal heating method, using the “LEISTER” air heater made in Switzerland, blowing hot air from the inner wall of the tube to melt the plastic, and then marking the pattern and batch number. The indexing adopts precision cam indexing mechanism, and the positioning is precise and stable. The main motor adopts frequency conversion speed regulation, and the user can adjust the running speed by himself.
Production capacity: 40 pieces/min
Filling capacity: 5-250ml
Hose diameter: 15-50mm
Hose length: 50-220mm
Technical Parameters | |||
Production capacity | 40 pieces/min | Motor power | main motor 1.1kw |
Filling capacity | 5-250ml | heat sealing power 3kw | |
Hose diameter | 15-50mm | Working pressure | 0.60MPa |
Hose length | 50-220mm | Air consumption | not less than 600L/min |
Filling error | ≤±1%; | Equipment weight | 750kg |
Dimensions | 1700*1000*2000mm |
ITEMS | BRAND | ORIGIN | ITEMS | BRAND | ORIGIN |
PLC | DELTA | TAIWAN | Main Pneumatic component | AIRTAC | TAIWAN |
Frequency Changer | DELTA | TAIWAN | Air-break switch | CHNT | CHINA |
Touch Screen | EVIEW | TAIWAN | Emergency Swift | Schneider | FRANCE |
Encoder | Omron | JAPAN | Power switch | Schneider | FRANCE |
Hot Air Generator | Leiste | Switzerland | Power lock | Schneider | FRANCE |
Thermometer MODE | DELTA | TAIWA | Power indicator | Schneider | FRANCE |
Proximity switch | SICK | GERMANY | Ac contactor | Schneider | FRANCE |
Color Code Sensor | PANASONIC | JAPAN | Material Level Sensor (optional) | P+F | Germany |
Air Pressure Control System | Omron | JAPA | Material contact parts | 316L Stainless Steel | CHINA |
Change Speed Motor | WANNAN | CHINA | Machine Structure | 304 Stainless steel | CHINA |
1. The mechanical transmission part is closed below the platform, which is safe, reliable and pollution-free;
2. The filling and sealing part is installed above the platform, and the semi-closed non-static outer frame is visible in the cover, which is easy to observe, operate and maintain;
3. Stainless steel operation panel, plexiglass protective cover and door protection function installed;
4. Slant-hanging tube warehouse, which can accommodate more tubes,
5. The upper tube device is equipped with a vacuum adsorption device. After the upper tube interacts with the pressure tube device, the tube is inserted into the upper tube station;
6. Photoelectric benchmarking station, using high-precision probes, stepping motors, etc. to control the tube pattern to be in the correct position;
7. No tube, no filling, when the injection is finished, the air blowing device blows off the paste tail; anti-drawing, anti-drip filling
8. The heating temperature of the end sealing adopts (Leister hot air gun) internal heating at the end of the tube, and the external cooling device is equipped;
9. At the same time of sealing the end, the production batch number or date is automatically embossed on the position required by the process;
10. Waste cutting manipulator cuts the waste edge at the tail of the tube, and seals with special shapes such as right angle, R angle or arc;
11. Failsafe alarm, overload shutdown, water pressure protection, air pressure protection.
