HX-002 Automatic Plastic Tube Filling and Sealing Machine
◎ Adopts ultrasonic sealing technology, no need warm up time, more stable and neat sealing, no distortion and low reject rate less than 1%.
◎ Manually feed the tube, press start button, machine could automatically identify the registration mark, filling, sealing with coding, end trimming.
◎ Independent R & D for digital ultrasonic automatic tracking electrical control box, no need manual adjust the frequency, with power auto compensation function, avoiding the reduction of power after long time use. Could freely adjust the power based on tube material and size, stable and minimum the fault rate, extend the life span than the normal electrical box.
◎ PLC with touch screen control system, providing friendly operation experience.
◎ “Panasonic” high sensitive sensor with stepping motor, could track the registration mark precisely.

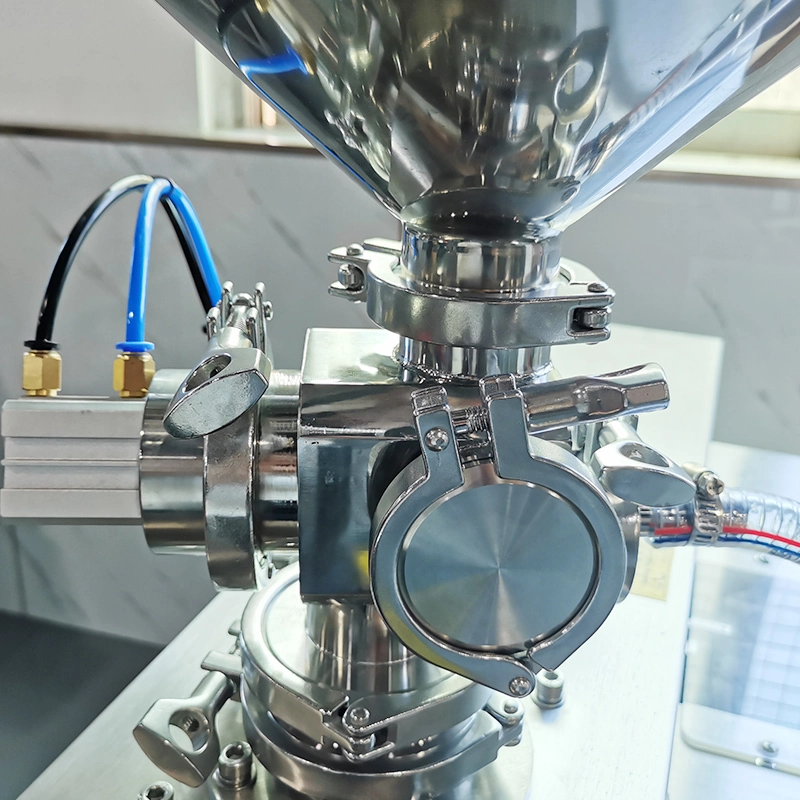

◎ Equipped with filler for both liquid and cream, with filling tolerance within ±1%.
◎ Made of 304 stainless Steel, acid and alkali resistance, corrosion resistance.
| Machine Parameters | |||
| Model | HX-002 | Capacity | 10-15pcs/min |
| Frequency | 20kHz | Tube diameter | 13-50mm |
| Power | 2600W | Tube height | 50-210mm |
| Power supply | AC220V/110V | Working pressure | 0.5 MPa |
| Filling Range | A.6-60ml B.10-120ml | Size | L1000*780*1550mm |
| C.25-250ml D.50-500ml | N.W/G.W | 130kgs | |
| Filling accuracy | ±1g | ||
| Main Part List | |||
| Ultrasonic system | Automatic frequency tracing | Air cylinder | AirTAC, China Taiwan |
| Benchmarking electric eye | Panasonic, Japan | Solenoid valve | AirTAC, China Taiwan |
| PLC screen | Coolmay, CN | Stepper motor | JMK motion, CN |
| electric relay | Omron, Japan | Transducer | CN |
| Inductive switch | SICK, Germany | Air source processor | AirTAC, China Taiwan |
| Foot switch | DELIXI, CN | ||
