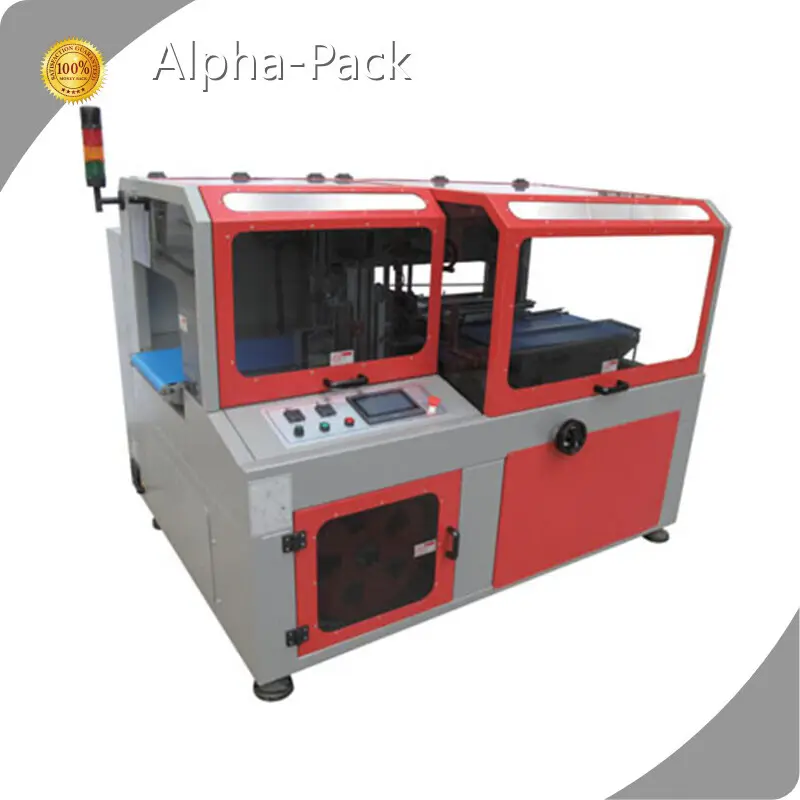

Product details of the automatic shrink packing machine
Product Introduction
Innovative technology and superior materials are adopted in Alpha-Pack automatic shrink packing machine manufacturing. To assure its durability, the product has been tested for many times. This product price has the competition ability, deeply the market welcome, has the huge market potential.
Model No. |
APSS-5022 |
APSS-7522 |
APSS-10022 |
APSS-4015E |
APSS-7030E |
Power Supply |
220V/1PH//3000W |
3800V/3PH//4000W |
380V/3PH//5000W |
220V/1PH//2000W |
220V/1PH//2500W |
Air Supply |
6 Bar/10L/min. |
6 Bar/10L/min. |
6 Bar/10L/min. |
6 Bar/30L/min. |
6 Bar/30L/min. |
Sealing bar width |
500mm |
750mm |
1000mm |
400mm |
700mm |
Max.pack height |
220mm |
220mm |
220mm |
150mm |
300mm |
Sealing jaw driven by |
servo motor |
servo motor |
servo motor |
Cylinder |
Cylinder |
Max.conveyor speed |
35m/min. |
35m/min. |
35m/min. |
35m/min. |
35m/min. |
Max. packing speed |
70ppm |
50ppm |
40ppm |
50ppm |
30ppm |
Center seal function |
Yes |
Yes |
Yes |
Yes |
Yes |
Machine size(L*W*H) |
2130*1697*1722 mm |
2404*2153*1722 mm |
2603*2395*1722 mm |
1582*1500*1722 mm |
2404*2150*1722 mm |
Packing size(L*W*H) |
2210*2020*1720 mm |
2480*2160*1720mm&1460*600*620mm |
2660*2110*1720mm&1660*960*1170mm |
1810*1610*1720mm |
2480*2080*1720mm&1460*600*620mm |
Machine weight(NW/GW) |
760/1000kg |
820/1136kg&90/120kg |
1040/1330kg&152/200kg |
630/770kg |
800/1110kg&90/120kg |
Company Feature
• Our company was established in After years of development, our business has grown from a single development to an integrated development pattern with prominent main business and full industrial chain.
• Our company has obvious geographical location advantages, so the transportation is very convenient.
• Our company has a first-class independent R&D team and a strong infrastructure for scientific research. In order to integrate scientific research and production, our team members continue to make improvement in system, technology, management and innovation. It is good for accelerating the transformation and industrialization of scientific and technological achievements.
If you want to know more detailed information, feel free to consult Alpha-Pack.
