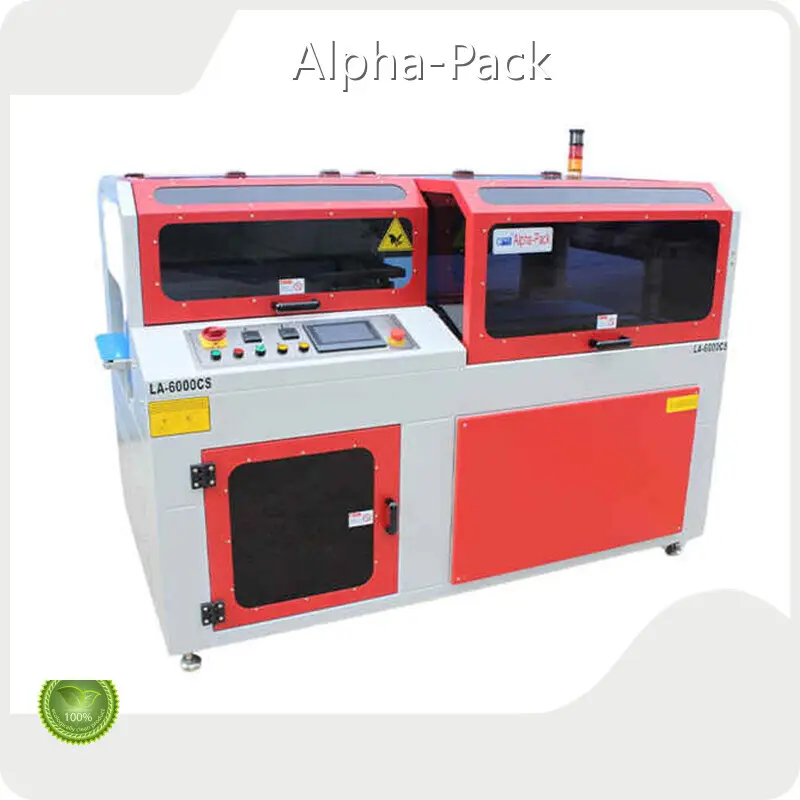

Product details of the custom packing machine
Product Introduction
Standard manufacturing: Alpha-Pack custom packing machine is manufactured adopting the highest production standards at home and abroad. These standards include quality production system and operating system. The accurate inspection process guarantees that the product meets with the international quality standards. With the expanding of sales work, Alpha-Pack has been more attaching more importance to the quality assurance of custom packing machine.
Model No. |
LA.6000CS |
LA.6000 |
LA.5000 |
Power Supply |
220V/1 PH/50HZ/3200W |
220V/1 PH/50HZ/3000W |
220V/1 PH/50HZ/2800W |
Air Supply |
6 Bar/ 90L/min. |
6 Bar/ 90L/min. |
6 Bar/ 60L/min. |
Sealing bar dimension |
610* 480 mm |
610* 480 mm |
480* 420 mm |
Max. pack height |
200mm |
120mm |
80mm |
Max. conveyor speed |
30m/min. |
30m/min. |
30m/min. |
Max. packing speed |
45ppm |
45ppm |
45ppm |
Center seal function |
Yes |
No |
No |
Machine size |
2040* 1550*1650 mm |
2040* 1550*1650 mm |
1300* 1450*1650 mm |
Packing size |
2160* 1730*1620 mm |
2160* 1730*1620 mm |
1420* 1630*1620 mm |
Machine weight |
610/780kg |
580/750kg |
390/500kg |
Model No. |
LA-8000CS |
LA-8000VMA |
LA-8000VMB |
Power Supply |
220V/1 PH/50HZ/3600W |
220V/1 PH/50HZ14600W |
220V/1 PH/50HZ/3400W |
Air Supply |
6 Bar/ 90L/min. |
6 Bar/ 10L/min. |
6 Bar/ 90L/min. |
Sealing bar dimension |
860*670 mm |
860*670 mm |
860*670 mm |
Max. pack height |
250 mm |
300mm |
200mm |
Sealing rack driven by |
Cylinder |
Servo motor vertical motion |
Cylinder vertical motion |
Max. conveyor speed |
30m/ min. |
30m/ min. |
30m/ min. |
Max. packing speed |
35 ppm |
35ppm |
35ppm |
Center seal function |
Yes |
Yes |
No |
Machine size |
2473*1713*1670 mm |
2473*1713*1670 mm |
2473*1713*1670 mm |
Packing size |
2580*1840*1570 mm |
2580*1840*1570 mm |
2580*1840*1570 mm |
Machine weight |
750/950 kg |
780/980kg |
750/950 kg |
Company Advantage
• With the joint efforts of all employees, our products are sold well in major cities in China and also exported to dozens of countries and regions such as the Middle East, South Asia, Australia, Eastern Europe, North America and South America.
• Alpha-Pack has advantageous conditions for product delivery. Nearby there is a prosperous market, developed communication, and traffic convenience.
• Our company has numerous high-quality and professional personnel of production and processing, introducing international advanced experience and technology in aspects, such as production and processing. Besides, our product quality management and testing have reached the leading level in the same industry.
Hello, thanks for the attention to this site! If you are interested in Alpha-Pack's Automatic filling,Vertical form film seal packing machine,shrink packing machine, please contact us quickly. We are looking forward to your call.
