We combine packing machine's R&D, production, marketing and service all-in-one, to offer systematic packaging solutions.

Packing Machine Manufacturer Alpha-Pack Manufacture 1
Packing Machine Manufacturer Alpha-Pack Manufacture 2
Packing Machine Manufacturer Alpha-Pack Manufacture 3
Packing Machine Manufacturer Alpha-Pack Manufacture 4
Packing Machine Manufacturer Alpha-Pack Manufacture 1
Packing Machine Manufacturer Alpha-Pack Manufacture 2
Packing Machine Manufacturer Alpha-Pack Manufacture 3
Packing Machine Manufacturer Alpha-Pack Manufacture 4

Packing Machine Manufacturer Alpha-Pack Manufacture

Inquiry

Model

Parameter  for APR-C20L

Parameter  for APR-C20H

Speed

5-12 cycles / min

5-12 cycles / min

Effective load bearing

20KG

20KG

Floor area

3590mm*1725mm

3590mm*1725mm

Power

220V 3KW, 1Ph,50Hz

220V 3KW, 1Ph,50Hz

Working radius

1600mm

1600mm

 Applicable carton range

L:200-500mm; W:200-500mm; H: 200-400mm (apply to 1200mm*1200mm)

L: 200-500mm; W: 200-500mm; H: 200- 400mm (apply to 1200mm*1200mm)

Palletizing height

standard 1.6Meter

2.2Meter

Pallet size

Maximum 1200mm*1200mm Material: plywood, plastic, wood

Maximum 1200mm*1200mm Material: plywood, plastic, wood

Placement rules

AB stack

AB stack

Barometric pressure

0.4-0.8 Air consumption: 400nl/min

0.4-0.8 Air consumption: 400nl/min

Re-read positioning accuracy

±0.04

±0.04

Product Introduction

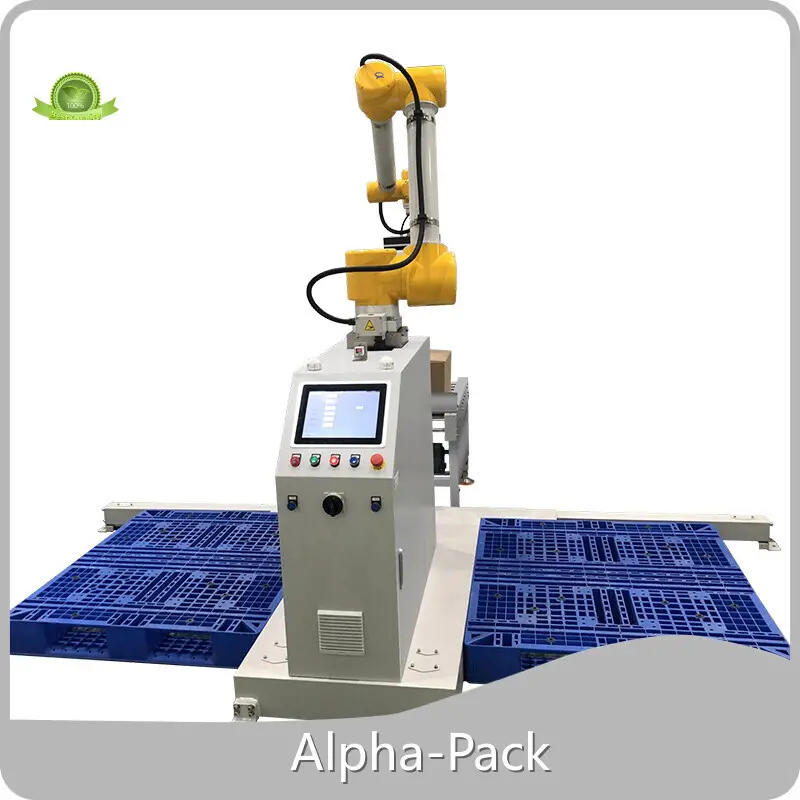

Collaborative Palletizer Workstation is a small goods- handling expert tailor-made for food, medicine, 3C, food, printing, daily chemical and other industries. Visual programming design only takes 5 minutes. After entering the information within a few minutes, the products/cartons can be stacked on the wooden board to realize unmanned handling.

The visual programming design that does not pick people is convenient for the operator to easily operate the robot; the end of the high-load design. The end effector can grab up to 20KG heavy products. The machine has flexible deployment, small footprint, simple wiring, convenient maintenance and fast efficiency. It can stack 8-10 boxes in one minute.


未标题-2 (14)
3 (13)

Characteristics

Simple operation

With touch screen design, it only needs to manually enter and save the parameters to realize unmanned handling;

Simple operation process

Preparation - Palletizing mode setting - A palletizing - B palletizing - complete;

Both left and right can be stacked Labor saving

The palletizing operation of the goods is completed by the machine instead of the manual;

Easy maintenance

Precision parts, only the suction cup needs to be replaced after 300,000 times of use;

High safety factor

No need to use fences for safety isolation, with high reliability and safety;

Flexible Expansion

Can be combined with unsealing machine, carton labeling machine and other assembly lines to provide customers with an overall solution for packaging goods.

Operating system

With 5 Axis

Austria Keba control system

Annovance 12 inch color touch screen

Build in anti collisione sensor

未标题-3 (2)
Palletizing mode display
Packing Machine Manufacturer Alpha-Pack Manufacture 8
Palletizing on the left
Here is the latest news about our corporate, our people, or our activities. It is a better way to know who we are
Packing Machine Manufacturer Alpha-Pack Manufacture 9
Simultaneous palletizing on both sides
Here is the latest news about our corporate, our people, or our activities. It is a better way to know who we are
Liftable collaborative palletizing workstation display
32
APR-C20L
Fixed Base Collaborative Palletizing Workstation(Max Pallet Height:1600mm)
31
APR-C20H
Liftable Collaborative Palletizing Workstation(Max Pallet Height:2200mm)
External dimensions
