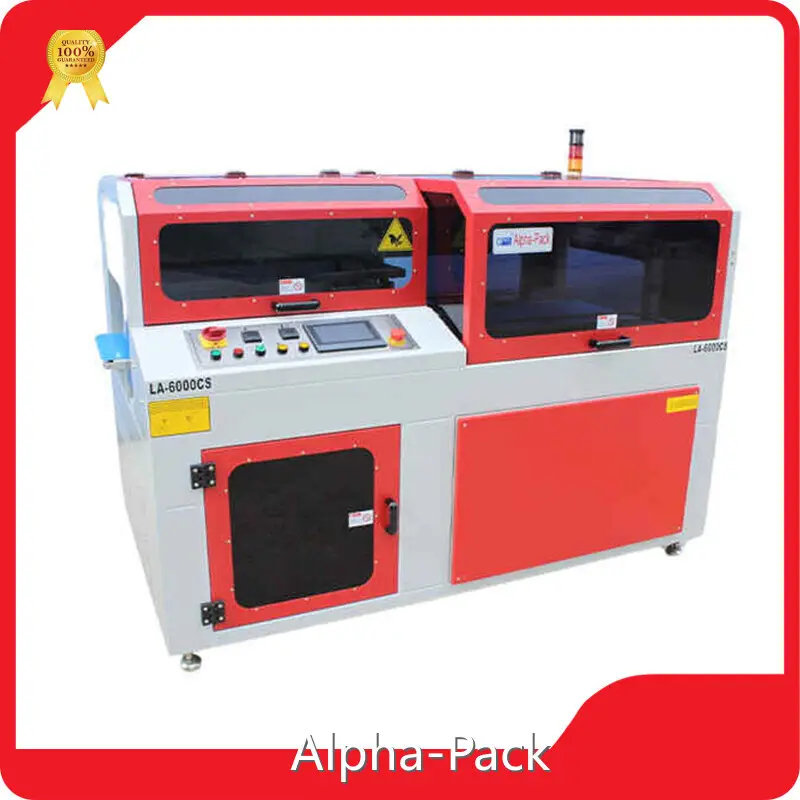

Shrink Packaging Equipment by Alpha-Pack
Product details of the shrink packaging equipment
Product Information
Relying on advanced technology, Alpha-Pack shrink packaging equipment is finely manufactured according to the lean production method. The product is internationally recognized for its excellent performance and long service life. Due to its very good characteristics, the market application range of products has gradually expanded.
|
Model No. |
LA.6000CS |
LA.6000 |
LA.5000 |
|
Power Supply |
220V/1 PH/50HZ/3200W |
220V/1 PH/50HZ/3000W |
220V/1 PH/50HZ/2800W |
|
Air Supply |
6 Bar/ 90L/min. |
6 Bar/ 90L/min. |
6 Bar/ 60L/min. |
|
Sealing bar dimension |
610* 480 mm |
610* 480 mm |
480* 420 mm |
|
Max. pack height |
200mm |
120mm |
80mm |
|
Max. conveyor speed |
30m/min. |
30m/min. |
30m/min. |
|
Max. packing speed |
45ppm |
45ppm |
45ppm |
|
Center seal function |
Yes |
No |
No |
|
Machine size |
2040* 1550*1650 mm |
2040* 1550*1650 mm |
1300* 1450*1650 mm |
|
Packing size |
2160* 1730*1620 mm |
2160* 1730*1620 mm |
1420* 1630*1620 mm |
|
Machine weight |
610/780kg |
580/750kg |
390/500kg |
|
Model No. |
LA-8000CS |
LA-8000VMA |
LA-8000VMB |
|
Power Supply |
220V/1 PH/50HZ/3600W |
220V/1 PH/50HZ14600W |
220V/1 PH/50HZ/3400W |
|
Air Supply |
6 Bar/ 90L/min. |
6 Bar/ 10L/min. |
6 Bar/ 90L/min. |
|
Sealing bar dimension |
860*670 mm |
860*670 mm |
860*670 mm |
|
Max. pack height |
250 mm |
300mm |
200mm |
|
Sealing rack driven by |
Cylinder |
Servo motor vertical motion |
Cylinder vertical motion |
|
Max. conveyor speed |
30m/ min. |
30m/ min. |
30m/ min. |
|
Max. packing speed |
35 ppm |
35ppm |
35ppm |
|
Center seal function |
Yes |
Yes |
No |
|
Machine size |
2473*1713*1670 mm |
2473*1713*1670 mm |
2473*1713*1670 mm |
|
Packing size |
2580*1840*1570 mm |
2580*1840*1570 mm |
2580*1840*1570 mm |
|
Machine weight |
750/950 kg |
780/980kg |
750/950 kg |
Company Feature
• Alpha-Pack's location enjoys the advantageous geographic condition and all-sided traffic unimpeded access. And it is convenient for the transportation of various products, so we can ensure that the source of goods would be supplied in time.
• Our sale market covers the whole country. Our products are also exported to Southeast Asia, Africa and other countries and regions.
• Alpha-Pack was established in After years of development, we accumulate rich industry experience and gain praises from customers.
