Model | HX-009S | HX-009 (The model you are browsing) | HX-005H |
Auto/Semi-Auto | Fully automatic | Fully automatic | Fully automatic |
Function | Filling and sealing | Filling and sealing | Filling and sealing |
Safety Protection | Safety device equiped | Overload protection | Safety device equiped |
Overload protection | Overload protection | ||
Station | Ten stations (rotary table) | Ten stations (rotary table) | Servo motor driven chain type |
Anti-Driping Filling | Anti-dripping | Anti-dripping | / |
Filling nozzle | Filling nozzle | ||
Tube Type | Dual-chamber tube | Single tube | Strip monodose vials tubes |
Tube Material | Plastic tube | Plastic tube | PE Plastic |
ABL tube | ABL tube | PP Plastic | |
Color Mark System | Panasonic Color Mark Sensor | Panasonic Color Mark Sensor | / |
Tube Outlet Detection | Discharge check alarm system | Discharge check alarm system | / |
Fault Alram | Failure warning feature | Failure warning feature | Failure warning feature |
Frequency | 20 kHz | 20 kHz | 20 kHz |
Power | 2.6 KW | 2.6 KW | 2.6 KW |
Power Supply | AC220V/110V | AC220V/110V | AC220V/110V |
Filling System | Pneumatic piston pump | Pneumatic piston pump | 5 heads Valveless Ceramic Plunger Pump (liquid) |
5 heads Rotary Valve Ceramic Plunger Pump (paste) | |||
Filling Range | A. 10-120 ml | A. 6-60 ml | 0.3-10 ml Valveless Ceramic Plunger Pump |
B. 25-250 ml | B. 10-120 ml | 1-10 ml Rotary Valve Ceramic Plunger Pump | |
C. 25-250 ml | |||
D. 50-500 ml | |||
Filling Error | ≤±1% | ≤±1% | ≤±1% |
Capacity | 8-13 pcs/min | 22-28 pcs/min | 15-20 monodose/min |
Tube Diameter | 25-50 mm | 13-50 mm | 1-7 monodoses/length 140 mm |
Tube Height | 50-210 mm | 50-250 mm | 50-120 mm |
Working Pressure | 0.6 MPa | 0.6 MPa | 0.4 MPa |
Air Comsumption | 0.48m3/min | 0.38m3/min | 0.2m3/min |
Dimension (mm) | L1850*W1400*H1800 | L1590*W1400*H1650 | L1300*W1300*H1950 |
N.W/G.W | 504 kgs | 424 kgs | 420 kgs |
Option | 1. Auto refill pump | 1. Auto refill pump | Finish products conveyor |
2. Double jacket heating hopper with stirrer | 2. Double jacket heating hopper with stirrer | ||
3. Filling nozzle with air blow | 3. Filling nozzle with air blow | ||
4. 316 stainless steel contact parts | 4. 316 stainless steel contact parts | ||
5. Saftey door function | 5. Saftey door function | ||
6. Pressurer hopper | |||
7. Date coding |
Product Introduction

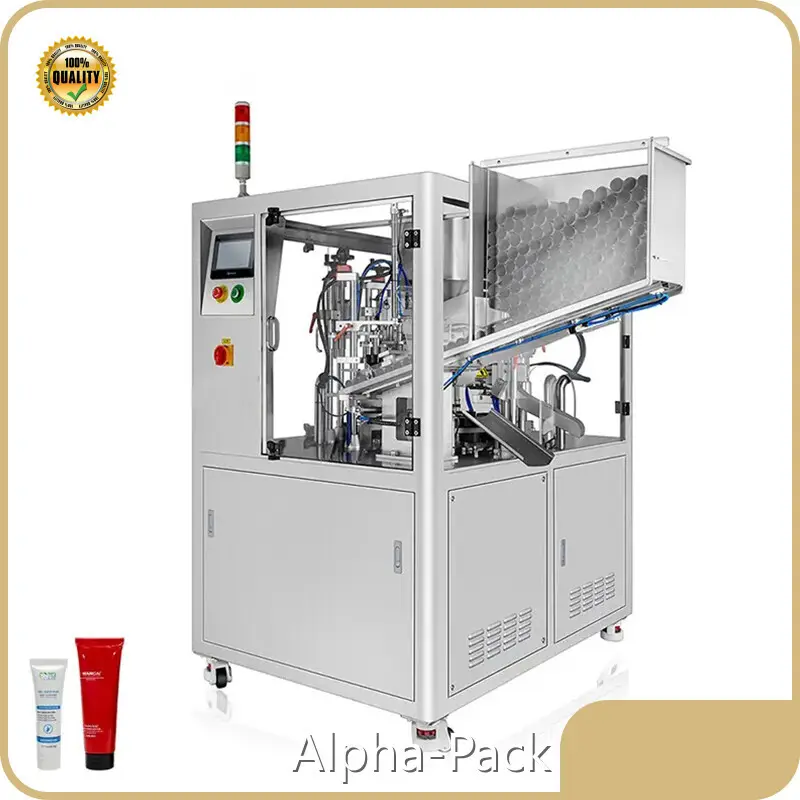

◈ Machine could automatically finish tube feeding, registration mark identifying, filling, sealing with coding, end trimming, tube out feeding, fully automatic, save labor cost and lower production cost.
◈ Machine is equipped with safety protection device and overload protection.
◈ Cam indexing system could position precisely for ten working stations.
◈ Adopts ultrasonic sealing technology, no need warm up time, more stable and neat sealing, no distortion and low reject rate less than 1%.
·◈ Independent R & D for digital ultrasonic automatic tracking electrical control box, no need manual adjust the frequency, with power auto compensation function, avoiding the reduction of power after long time use. Could freely adjust the power based on tube material and size, stable and minimum the fault rate, extend the life span than the normal electrical box.
◈ PLC with touch screen control system with alarm system, could directly view the alarm information on the touch screen, could locate the problem an
Still have question about automatic tube filling machine? Contact us and we will answer your question as soon as possible.
Note: We don't provide emulsifying machine. This machine cannot make filling materials by itself. If you need, we could help you to contact manufacturer of emulsifying machine.
Warranty:
1 year warranty from us (Excludes consumables).
We also do repairs after the warranty period (Labour, shipping, and parts fee applied).
