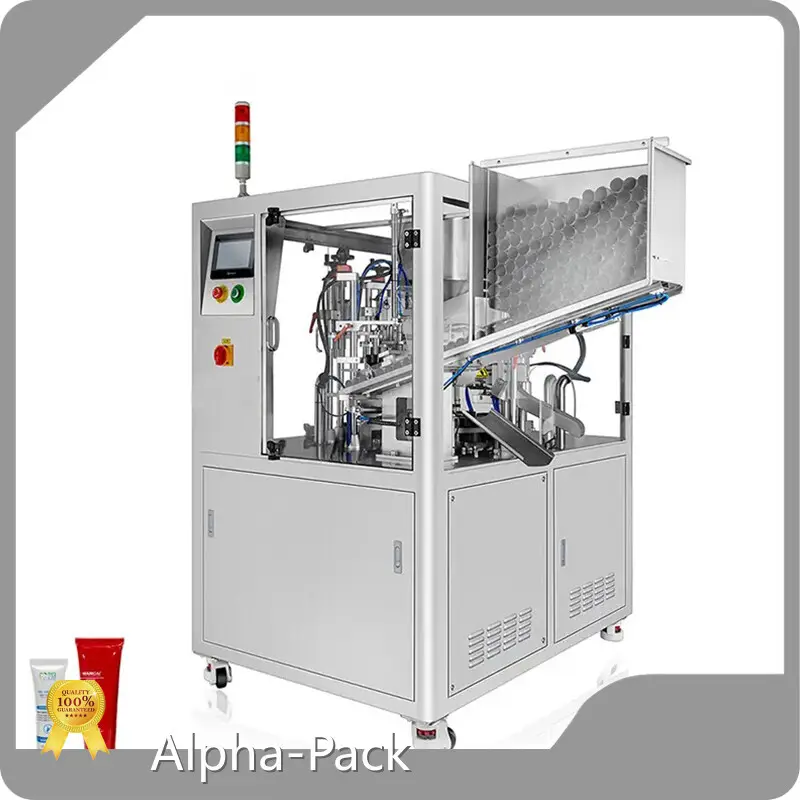

Packing Machine Manufacturer Alpha-Pack-1 1
Packing Machine Manufacturer Alpha-Pack-1 2
Packing Machine Manufacturer Alpha-Pack-1 1
Packing Machine Manufacturer Alpha-Pack-1 2

Packing Machine Manufacturer Alpha-Pack-1

Inquiry

Product details of the packing machine manufacturer


Quick Overview

This high-quality and performance-stable packing machine manufacturer is available in a wide range of types and specifications so that customers' diverse needs can be satisfied. The whole production process of Alpha-Pack packing machine manufacturer is guided and supervised by experienced professionals. Alpha-Pack strictly controls the quality and performance of the product. packing machine manufacturer is widely applicable to fields such as food and beverage, pharmaceutical, daily necessities, hotel supplies, metal materials, agriculture, chemicals, electronics, and machinery. Alpha-Pack (Heyuan) Co.,Ltd. has a number of excellent business elites and many good long-term stable partners.


Product Information

Compared with its peer products, packing machine manufacturer produced by Alpha-Pack has the following advantages.

Model HX-009S HX-009 (The model you are browsing) HX-005H
Auto/Semi-Auto Fully automatic Fully automatic Fully automatic
Function Filling and sealing Filling and sealing Filling and sealing
Safety Protection Safety device equiped Overload protection Safety device equiped
Overload protection Overload protection
Station Ten stations (rotary table) Ten stations (rotary table) Servo motor driven chain type
Anti-Driping Filling Anti-dripping Anti-dripping /
Filling nozzle Filling nozzle
Tube Type Dual-chamber tube Single tube Strip monodose vials tubes
Tube Material Plastic tube Plastic tube PE Plastic
ABL tube ABL tube PP Plastic
Color Mark System Panasonic Color Mark Sensor Panasonic Color Mark Sensor /
Tube Outlet Detection Discharge check alarm system Discharge check alarm system /
Fault Alram Failure warning feature Failure warning feature Failure warning feature
Frequency 20 kHz 20 kHz 20 kHz
Power 2.6 KW 2.6 KW 2.6 KW
Power Supply AC220V/110V AC220V/110V AC220V/110V
Filling System Pneumatic piston pump Pneumatic piston pump 5 heads Valveless Ceramic Plunger Pump (liquid)
5 heads Rotary Valve Ceramic Plunger Pump (paste)
Filling Range A. 10-120 ml A. 6-60 ml 0.3-10 ml Valveless Ceramic Plunger Pump
B. 25-250 ml B. 10-120 ml 1-10 ml Rotary Valve Ceramic Plunger Pump
  C. 25-250 ml
  D. 50-500 ml
Filling Error ≤±1% ≤±1% ≤±1%
Capacity 8-13 pcs/min 22-28 pcs/min 15-20 monodose/min
Tube Diameter 25-50 mm 13-50 mm 1-7 monodoses/length 140 mm
Tube Height 50-210 mm 50-250 mm 50-120 mm
Working Pressure 0.6 MPa 0.6 MPa 0.4 MPa
Air Comsumption 0.48m3/min 0.38m3/min 0.2m3/min
Dimension (mm) L1850*W1400*H1800 L1590*W1400*H1650 L1300*W1300*H1950
N.W/G.W 504 kgs 424 kgs 420 kgs
Option 1. Auto refill pump 1. Auto refill pump Finish products conveyor
2. Double jacket heating hopper with stirrer 2. Double jacket heating hopper with stirrer
3. Filling nozzle with air blow 3. Filling nozzle with air blow
4. 316 stainless steel contact parts 4. 316 stainless steel contact parts
5. Saftey door function 5. Saftey door function
  6. Pressurer hopper
  7. Date coding
2 (19)
2 (19)

Product Introduction

◈  Machine could automatically finish tube feeding, registration mark identifying, filling, sealing with coding, end trimming, tube out feeding, fully automatic, save labor cost and lower production cost.

◈  Machine is equipped with safety protection device and overload protection.

◈  Cam indexing system could position precisely for ten working stations.

◈  Adopts ultrasonic sealing technology, no need warm up time, more stable and neat sealing, no distortion and low reject rate less than 1%.

·◈  Independent R & D for digital ultrasonic automatic tracking electrical control box, no need manual adjust the frequency, with power auto compensation function, avoiding the reduction of power after long time use. Could freely adjust the power based on tube material and size, stable and minimum the fault rate, extend the life span than the normal electrical box.

◈  PLC with touch screen control system with alarm system, could directly view the alarm information on the touch screen, could locate the problem an

3 (15)
screenshot-www
screenshot-www
应用场景图--用这张
应用场景图--用这张

Still have question about automatic tube filling machine? Contact us and we will answer your question as soon as possible.

Note: We don't provide emulsifying machine. This machine cannot make filling materials by itself. If you need, we could help you to contact manufacturer of emulsifying machine.


Warranty:

1 year warranty from us (Excludes consumables).

We also do repairs after the warranty period (Labour, shipping, and parts fee applied).
