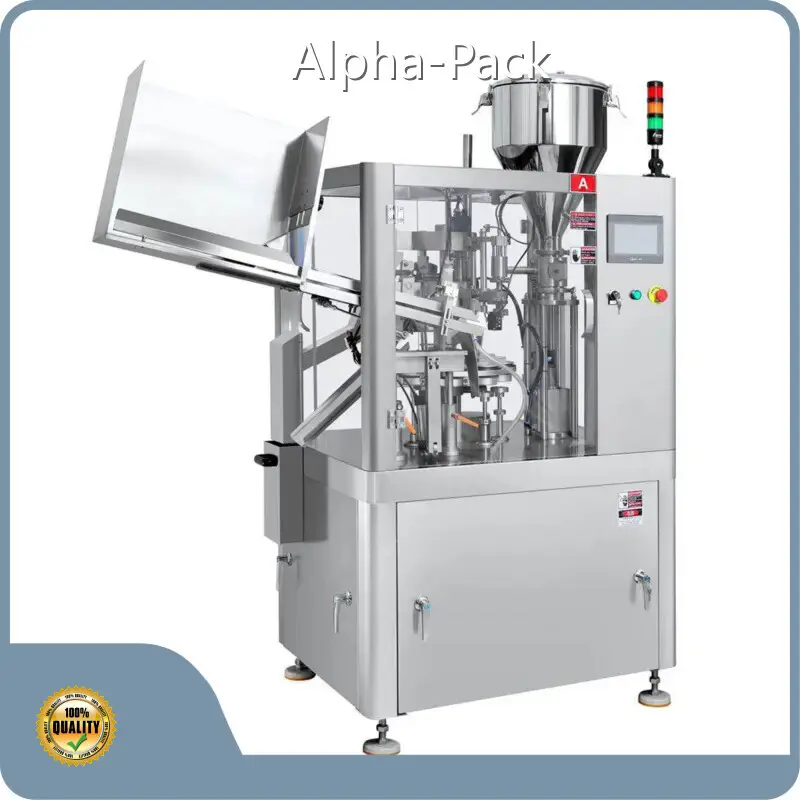

Packing Machine Manufacturer Alpha-Pack Company
| Technical Parameters | |||
| Production capacity | 40 pieces/min | Motor power | main motor 1.1kw |
| Filling capacity | 5-250ml | heat sealing power 3kw | |
| Hose diameter | 15-50mm | Working pressure | 0.60MPa |
| Hose length | 50-220mm | Air consumption | not less than 600L/min |
| Filling error | ≤±1%; | Equipment weight | 750kg |
| Dimensions | 1700*1000*2000mm | ||
| ITEMS | BRAND | ORIGIN | ITEMS | BRAND | ORIGIN |
| PLC | DELTA | TAIWAN | Main Pneumatic component | AIRTAC | TAIWAN |
| Frequency Changer | DELTA | TAIWAN | Air-break switch | CHNT | CHINA |
| Touch Screen | EVIEW | TAIWAN | Emergency Swift | Schneider | FRANCE |
| Encoder | Omron | JAPAN | Power switch | Schneider | FRANCE |
| Hot Air Generator | Leiste | Switzerland | Power lock | Schneider | FRANCE |
| Thermometer MODE | DELTA | TAIWA | Power indicator | Schneider | FRANCE |
| Proximity switch | SICK | GERMANY | Ac contactor | Schneider | FRANCE |
| Color Code Sensor | PANASONIC | JAPAN | Material Level Sensor (optional) | P+F | Germany |
| Air Pressure Control System | Omron | JAPA | Material contact parts | 316L Stainless Steel | CHINA |
| Change Speed Motor | WANNAN | CHINA | Machine Structure | 304 Stainless steel | CHINA |
1. The mechanical transmission part is closed below the platform, which is safe, reliable and pollution-free;
2. The filling and sealing part is installed above the platform, and the semi-closed non-static outer frame is visible in the cover, which is easy to observe, operate and maintain;
3. Stainless steel operation panel, plexiglass protective cover and door protection function installed;
4. Slant-hanging tube warehouse, which can accommodate more tubes,
5. The upper tube device is equipped with a vacuum adsorption device. After the upper tube interacts with the pressure tube device, the tube is inserted into the upper tube station;
6. Photoelectric benchmarking station, using high-precision probes, stepping motors, etc. to control the tube pattern to be in the correct position;
7. No tube, no filling, when the injection is finished, the air blowing device blows off the paste tail; anti-drawing, anti-drip filling
8. The heating temperature of the end sealing adopts (Leister hot air gun) internal heating at the end of the tube, and the external cooling device is equipped;
9. At the same time of sealing the end, the production batch number or date is automatically embossed on the position required by the process;
10. Waste cutting manipulator cuts the waste edge at the tail of the tube, and seals with special shapes such as right angle, R angle or arc;
11. Failsafe alarm, overload shutdown, water pressure protection, air pressure protection.
Company Advantages
· The design of packing machine manufacturer has been further strengthened.
· Advanced testing equipment and perfect quality assurance system ensure the product to be of great quality.
· We offer a reliable guarantee for the quality of this product.
Company Features
· Alpha-Pack (Heyuan) Co.,Ltd. has a long-standing reputation in packing machine manufacturer market.
· We have largely broadened our overseas packing machine manufacturer markets. In recent years, the sales statistics show that the sales volume in the markets has doubled and estimates to continue to grow.
· Our customers can count on the power of Alpha-Pack (Heyuan) Co.,Ltd.. Ask!
Application of the Product
Alpha-Pack's packing machine manufacturer is widely used in many industries.
Alpha-Pack has rich experience in the industry and we are sensitive about customers' needs. Therefore, we can provide comprehensive one-stop solutions based on customers' actual situations.
