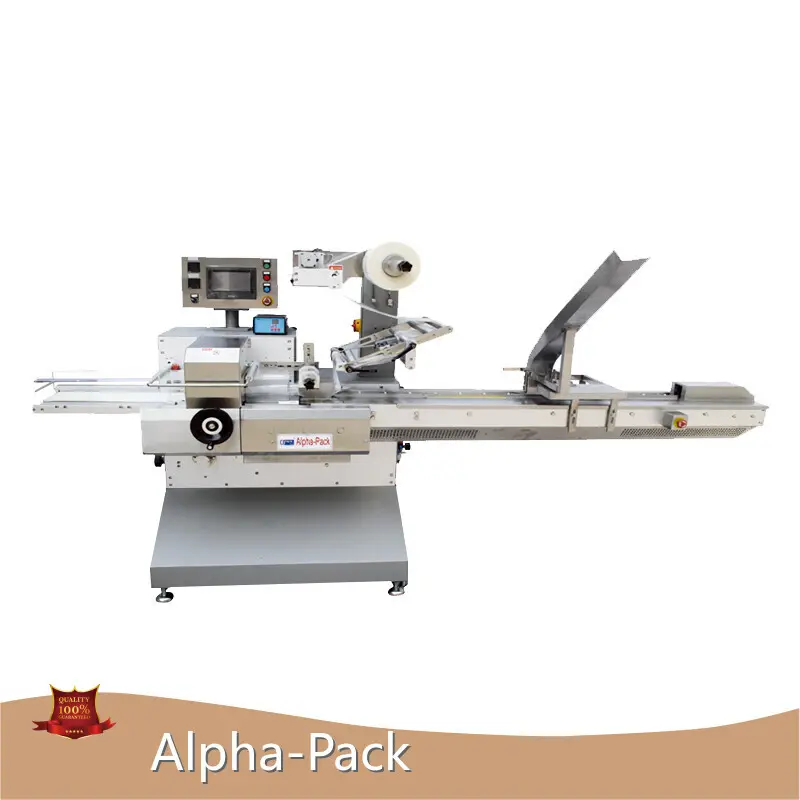

Product details of the horizontal flow pack machine
Product Introduction
Alpha-Pack horizontal flow pack machine is made under powerful productivity with excellent equipment and advanced technology. In addition to quality that meets industry standards, this product has a longer life than other products. The product, with so many advantages mentioned above, has an extensive application prospect.
Wrapping speed: | up to 100 pcs/min. | up to 250 pcs/min. |
Max. Film reel width: | 400mm | 500mm |
External film reel dia.: | 350mm | 350mm |
Max. package height: | 70mm | 100mm |
Max. package width: | 200mm | 200mm |
Min. package length: | 60mm | 76mm |
Max. package length: | 452mm | 564mm |
Compressed air pressure: | 6bar | 6bar |
Supply voltage : | 220-240v1ph | 380-400v3ph |
Power consumption : | 2.5kw | 3.0kw |
AHP-400S | AHP-500-3S | |||||||
φ114 | φ114 | φ114 | Φ174 | |||||
1SP | 2SP | 1SP | 2SP | 1SP | 2SP | 1SP | 2SP | |
Max. Length (mm) | 357 | 178 | 452 | 226 | 452 | 226 | 564 | 273 |
Min. Length (mm) | 120 | 60 | 151 | 75.3 | 151 | 75.3 | 182 | 91 |
Max. Height (mm) | 40 | 40 | 70 | 70 | 70 | 70 | 100 | 100 |
* The Max. Measures cannot be obtained all three together
Features
◎ Advanced PLC control system combined with 5.7" Colorful touch screen control panel, can easily set and change packing parameters, display production data and self-diagnostic machine error can be viewed directly from the screen.
◎ Servo driving system, film speed automatically synchronized with conveyor speed
◎ End seal jaw speed adjustable by a hand wheel when bag length change.
◎ All parts are built for easy maintenance and cleaning.
◎ Pulling wheels open by means of pneumatic switches. The sealing wheels open automatically at every machine stop.
◎ Safety guards as required by European law. Comply with CE standard.
◎ On all Machines is possible to install: Photocell for printed film, Printer for date, line shaft for automatic feeders, etc.
Company Feature
• Our company has numerous high-quality and professional personnel of production and processing, introducing international advanced experience and technology in aspects, such as production and processing. Besides, our product quality management and testing have reached the leading level in the same industry.
• Our company has a superior geographical condition, complete supporting facilities and convenient transportation.
• It has been years since our company was built in With the experience and knowledge accumulated in these years, we regard the problem from the perspective of development, seek opportunities through challenges, and turn the crisis into a turning point. Through constant struggle and breakthrough, we have won a number of honors and have been highly recognized and trusted by the industry, the market and consumers.
Alpha-Pack is dedicated to serving you. Your consultation and partnership are welcome!
